Ardmore Residence
Singapore
Height
1
To Tip:

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).

135.7 m / 445 ft
2
Architectural:

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."

135.7 m / 445 ft
3
Occupied:

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.

122.5 m / 402 ft
Floors
Above Ground

The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).

36
Below Ground

The number of floors below ground should include all major floors located below the ground floor level.

1
1 2 3 Ardmore Residence Outline
Height 135.7 m / 445.2 ft
Floors 36
Official Name

The current legal building name.

Ardmore Residence
Type

CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications / Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH 'Tallest Buildings' lists.

Building
Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished
Completed, 2013
Country

The CTBUH follows the United Nations's definition of Country, and thus uses the lists and codes established by that organization.

City

The CTBUH follows the United Nations's definition of City, and thus uses the lists and codes established by that organization.

Address
Function

A single-function tall building is defined as one where 85% or more of its usable floor area is dedicated to a single usage. Thus a building with 90% office floor area would be said to be an "office" building, irrespective of other minor functions it may also contain.

A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.

residential
Structural Material

Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered a “steel” structure as the concrete elements are not acting as the primary structure.

Reinforced Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars.

Precast Concrete
Both the main vertical/lateral structural elements and the floor spanning system are constructed from steel reinforced concrete which has been precast as individual components and assembled together on-site.

Mixed-Structure
Utilizes distinct systems (e.g. steel, concrete, timber), one on top of the other. For example, a steel/concrete indicates a steel structural system located on top of a concrete structural system, with the opposite true of concrete/steel.

Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used in a composite building’s core, columns, and floor spanning separately.

concrete
Official Website
Architectural

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."

135.7 m / 445.2 ft
To Tip

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).

135.7 m / 445.2 ft
Occupied

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.

122.5 m / 401.9 ft
Floors Above Ground

The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).

36
Floors Below Ground

The number of floors below ground should include all major floors located below the ground floor level.

1
# of Apartments

Number of Apartments refers to the total number of residential units (including both rental units and condominiums) contained within a particular building.

58
# of Parking Spaces

Number of Parking Spaces refers to the total number of car parking spaces contained within a particular building.

115
# of Elevators

Number of Elevators refers to the total number of elevator cars (not shafts) contained within a particular building (including public, private and freight elevators).

3
Tower GFA

Tower GFA refers to the total gross floor area within the tower footprint, not including adjoining podiums, connected buildings or other towers within the development.

17,178 m² / 184,902 ft²
Construction Schedule
2006

Proposed

2009

Construction Start

2013

Completed

Architect
Design

Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.

Architect of Record

Usually takes on the balance of the architectural effort not executed by the "Design Architect," typically responsible for the construction documents, conforming to local codes, etc. May often be referred to as "Executive," "Associate," or "Local" Architect, however, for consistency CTBUH uses the term "Architect of Record" exclusively.

Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.

MEP Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.

Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.

Other Consultant

Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).

Façade

These are firms that consult on the design of a building's façade. May often be referred to as "Cladding," "Envelope," "Exterior Wall," or "Curtain Wall" Consultant, however, for consistency CTBUH uses the term "Façade Consultant" exclusively.

Owner
Pontiac Land Group
Architect
Design

Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.

Architect of Record

Usually takes on the balance of the architectural effort not executed by the "Design Architect," typically responsible for the construction documents, conforming to local codes, etc. May often be referred to as "Executive," "Associate," or "Local" Architect, however, for consistency CTBUH uses the term "Architect of Record" exclusively.

Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.

MEP Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.

Project Manager

The CTBUH lists a project manager when a specific firm has been commissioned to oversee this aspect of a tall building’s design/construction. When the project management efforts are handled by the developer, main contract, or architect, this field will be omitted.

Pontiac Land Group
Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.

Other Consultant

Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).

Façade

These are firms that consult on the design of a building's façade. May often be referred to as "Cladding," "Envelope," "Exterior Wall," or "Curtain Wall" Consultant, however, for consistency CTBUH uses the term "Façade Consultant" exclusively.

Interiors
Terry Hunziker

CTBUH Awards & Distinctions

Best Tall Building Asia & Australasia 2014 Award of Excellence

2014 CTBUH Awards

Research

06 November 2014

Ben van Berkel, UNStudio

United Network Studio (UN Studio) is a Dutch architecture firm founded in 1988 by Ben van Berkel and Caroline Bos, which in the 2000s established...

About Ardmore Residence

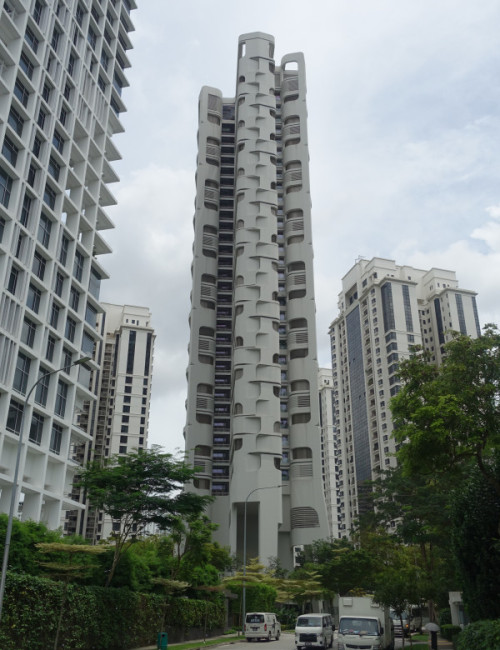

The Ardmore Residence in Singapore is located in a prime location close to the Orchard Road luxury shopping district and enjoys expansive views of the panoramic cityscape of Singapore City and the green areas of its immediate surroundings. The primary concept for the design of the residential tower is a multi-layered architectural response to the natural landscape inherent to the “Garden City” of Singapore. This landscape concept is integrated into the design by means of four large details.

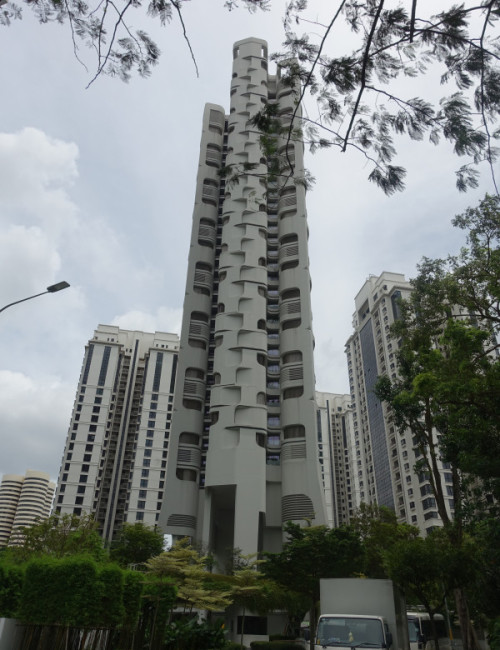

The facade of the Ardmore Residence is derived from micro-design features, which interweave structural elements, such as bay windows and balconies, into one continuous line. The façade pattern is repeated for every four stories of the building, while rounded glass creates column-free corners. Intertwining lines and surfaces wrap the apartments, seamlessly incorporating sun screening, while ensuring that the inner qualities of the apartments and the outer appearance together form a unified whole. From a distance, the tower appears to adopt divergent contours, whereas up close, a sense of organic mutation and transition is achieved as one circumnavigates the building.

The apartments embody the idea of a “living landscape.” An indoor-outdoor living experience is established through the inclusion of large windows and double-height balconies. These elements offer views across Singapore, while the vertical balconies offset the horizontality of the more private interior spaces. With the terrace spaces integrated into everyday internal living scenarios, the links between interior and exterior spaces are made seamless. Bay window features on the façade create natural shading on the glass to minimize heat gain and provide opportunities for planting by the residents.

The floor plan chosen for the apartments is designed to increase the amount of daylight and take advantage of the panoramic views. The plan is based on an analysis of Renaissance villa prototypes – and the concept of a cours d’honneur – in-between spaces that enable visual links between different parts of the same house. Here, this concept is appropriated and translated in order to allow for visual interconnection between specific areas within the apartments. This concept furthermore increases privacy for sleeping rooms and adds a four-dimensional aspect to the layout, as both wings can operate separately, service different needs and be active at different times of the day.

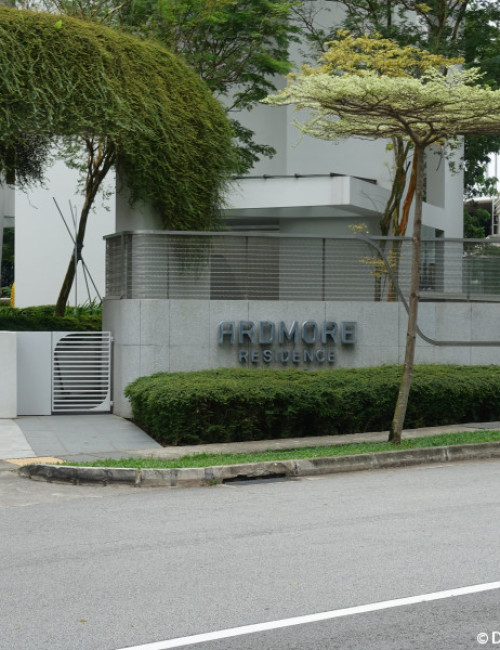

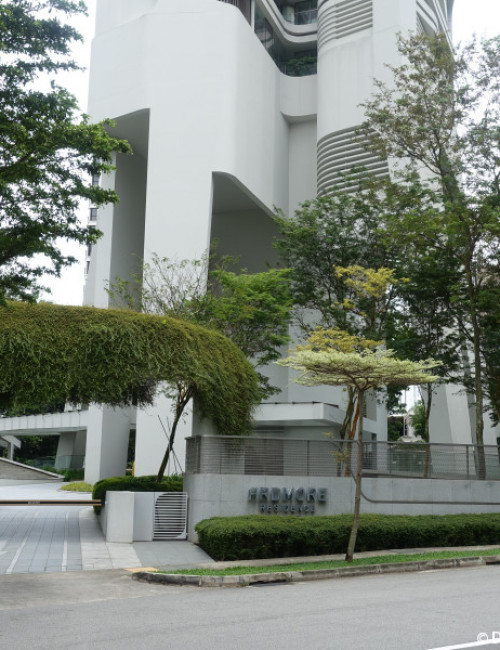

An open framework is introduced at the base of the tower, which enables full connectivity and transparency across the ground level landscaping, while organizing the shared amenity facilities. While building regulations in Singapore specify both the height and area of high-rise buildings, views are also deemed to be essential for the occupants. The raised design of the Ardmore Residence integrally incorporates these parameters to take advantage of the potential they afford to optimize the design concept and simultaneously create a fully integrated living and leisure.

The Ardmore Residence has been built using reinforced concrete, involving a substantial amount of prefabrication work. Single-story shear walls cantilever from the inner core walls and support one floor above and one floor below at the same time. An interlocking system was developed to stagger cantilevered shear walls across the height of the tower to produce the building’s distinctive look. Combined with the rounded corners of the walls and suspended ceilings, the building is imbued with the romance of an ocean liner, sailing over the urban greenery of Singapore.
