258
Global
Height rank
Height rank

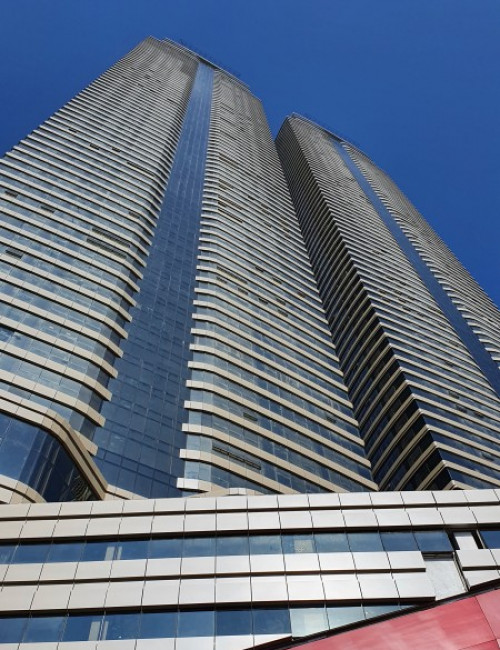

Yachthouse by Pininfarina Tower 1
Balneário Camboriú
pinifarina.jpg){kind=link}
.jpg){kind=link}
Luis__Henrique__Bueno__Villanova220714-040751.jpg)
Luis__Henrique__Bueno__Villanova-(1)220714-040753.jpg)
- Facts
-
Metrics
You must be a CTBUH Member to view this resource.
Height
294 m
/ 965 ft
Floors
80
Official Name
The current legal building name.
Yachthouse by Pininfarina Tower 1
Other Names
Other names the building has commonly been known as, including former names, common informal names,
local names, etc.
Yachthouse Residence Club by Pininfarina Tower 1
Name of Complex
A complex is a group of buildings which are designed and built as pieces of a greater development.
Type
CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications /
Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable
floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the
structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH
'Tallest Buildings' lists.
Building
Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished
Completed
Completion
2023
Country
The CTBUH follows the United Nations's definition of Country, and thus
uses the lists and codes established by that organization.
City
The CTBUH follows the United Nations's definition of City, and thus uses the
lists and codes established by that organization.
Address
Function
A single-function tall building is defined as one where 85% or more of its usable floor area is
dedicated to a single usage. Thus a building with 90% office floor area would be said to be an
"office" building, irrespective of other minor functions it may also contain.
A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.
A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.
Residential
Structural Material
All-Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.
All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.
All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.
Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.
Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.
All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.
All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.
Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.
Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.
All-Concrete
Height
Architectural
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the architectural top of the building, including spires, but not including antennae, signage,
flag poles or other functional-technical equipment. This measurement is the most widely utilized
and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of
the "World's Tallest Buildings."
294 m / 965 ft
To Tip
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the highest point of the building, irrespective of material or function of the highest element
(i.e., including antennae, flagpoles, signage and other functional-technical equipment).
294 m
/ 965 ft
Occupied
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the highest occupied floor within the building.
267 m
/ 876 ft
Helipad
Height, measured from the level of the lowest, significant, open-air, pedestrian entrance, to
the building's helipad.
294 m
/ 965 ft
Floors Above Ground
The number of floors above ground should include the ground floor level and be the number of main
floors above ground, including any significant mezzanine floors and major mechanical plant floors.
Mechanical mezzanines should not be included if they have a significantly smaller floor area than
the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general
roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it
is common in some regions of the world for certain floor levels not to be included (e.g., the level
4, 14, 24, etc. in Hong Kong).
80
Floors Below Ground
The number of floors below ground should include all major floors located below the ground floor
level.
1
# of Apartments
Number of Apartments refers to the total number of residential units (including both rental units
and condominiums) contained within a particular building.
132
# of Elevators
Number of Elevators refers to the total number of elevator cars (not shafts) contained within a
particular building (including public, private and freight elevators).
5
Top Elevator Speed
Top Elevator Speed refers to the top speed capable of being achieved by an elevator within a
particular building, measured in meters per second.
6 m/s
Rankings
-
By function
You must be a CTBUH Member to view this resource.
-
By material
You must be a CTBUH Member to view this resource.
#
258
Tallest in the World
#
3
Tallest in
South America
#
2
Tallest in
Brazil
#
2
Tallest in
Balneário Camboriú
Construction Schedule
2012
Proposed
2014
Construction Start
2023
Completed
You must be a CTBUH Member to view this resource.
Owner/Developer
Pasqualotto & GT
Architect
Design
Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Pininfarina S.p.A.
Architect of Record
Usually takes on the balance of the architectural effort not executed by the "Design Architect," typically responsible for the construction documents, conforming to local codes, etc. May often be referred to as "Executive," "Associate," or "Local" Architect, however, for consistency CTBUH uses the term "Architect of Record" exclusively.
LDD Arquitetura
Material Supplier
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Cladding
Glassec Viracon
Sealants
General Electric
