111 West 57th Street Download PDF

Note: As this project is under construction, the data is based on the most reliable information currently available. This data is thus subject to change until the building has completed and all information can be confirmed and ratified by the CTBUH.


Click an image to view larger version.
Height: Occupied
345.5 m / 1,134 ft

Height: To Tip
435.3 m / 1,428 ft
Height: Architectural
435.3 m / 1,428 ft

111 West 57th Street Outline
Floors Above Ground
82
# of Elevators
2
Tower GFA
29,357 m² / 315,996 ft²
# of Apartments
58

Facts

Official Name 111 West 57th Street
Other Names Stairway to Heaven, Steinway Tower, 105 West 57th Street, 107 West 57th Street
Structure Type Building
Status Under Construction
Country United States
City New York City
Street Address & Map 107 West 57th Street
Postal Code 10019
Building Function residential
Structural Material concrete
Proposed 2012
Construction Start 2015
Completion 2019
Official Website 111 West 57th Street

Companies Involved

Owner AmBase Corporation; JDS Development Group
Developer JDS Development Group
Architect
Design SHoP Architects
Structural Engineer
Design WSP | Parsons Brinckerhoff
MEP Engineer
Design Jaros, Baum & Bolles
Other Consultant
• Civil AKRF
• Code Code Consultants, Inc.
• Damping RWDI
Façade BuroHappold Engineering
• Geotechnical Mueser Rutledge Consulting Engineers
• Interiors Studio Sofield
• Lighting L’Observatoire International
• Preservation Jan Hird Pokorny Associates, Inc.
• Vertical Transportation Van Deusen & Associates
• Wind RWDI
Material Supplier
• Cladding Hilti AG

About 111 West 57th Street

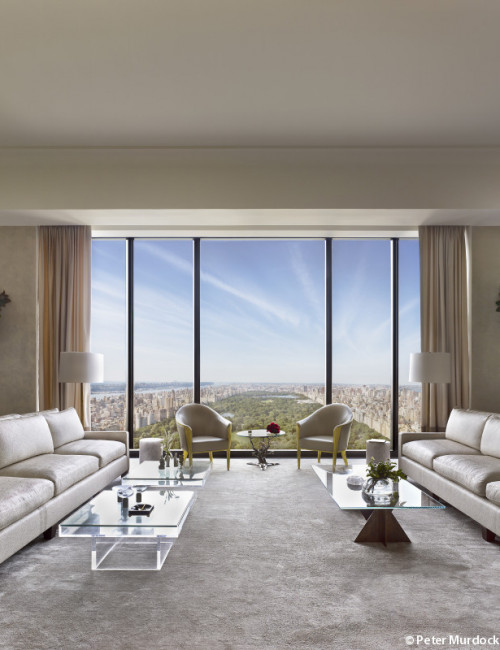

In a bold move blending thoughtful design with urban sensitivity, 111 West 57th Street typifies the luxurious extreme of the superslim typology in New York City. Containing only 60 units, the tower will offer an exclusive, centered perspective on Manhattan’s Midtown neighborhood, affording uninhibited views of the entire urban region.

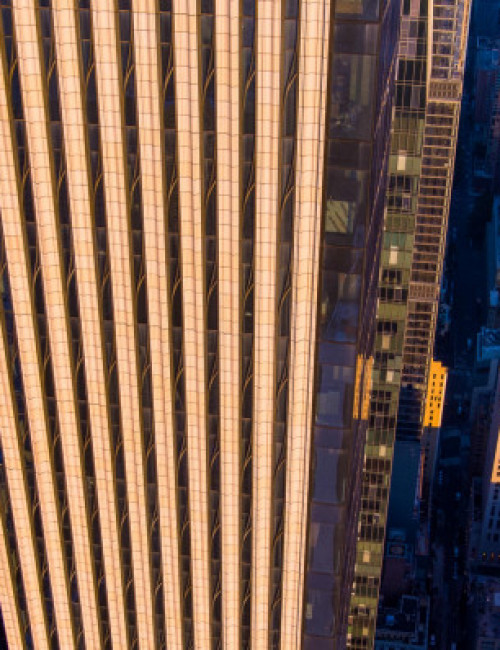

The tower’s form is derived through an unconventional interpretation of what is possible when working with the requirements of the Midtown zoning envelope, multiplying the height of each setback to present a feathered, rather than a stepped, profile. New ways were also explored to exploit the possibilities of terra-cotta, one of the most flexible and beautiful materials from the golden age of the Manhattan skyscraper. Blocks will be extruded and glazed, then stacked into undulating “pilasters” on the east and west façades, their staggered waves combining into a subtle and distinctive moiré pattern. Each pilaster ascends to one of the stepped setbacks above, so the tower appears to dematerialize as it rises. Alternating between them are vertical bands of glazing trimmed with bronze. To the north and south, views of the city and nearby Central Park are maximized through the use of taught, cleanly detailed glass walls. The footprint of the building was kept as compact as possible, positioning it well back from the street to respect and preserve the landmark Steinway Building at its base.

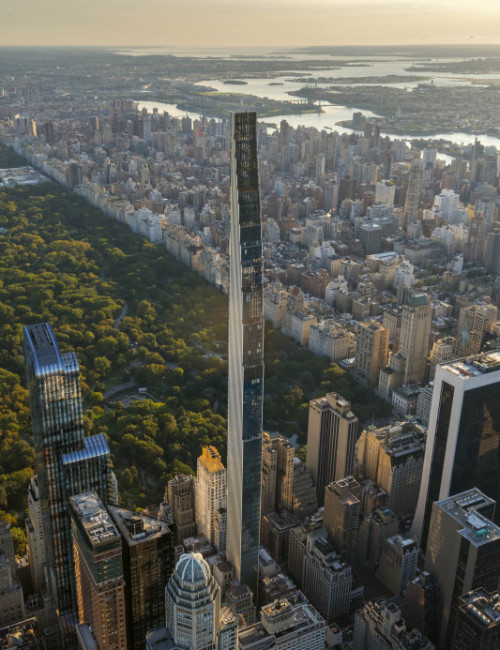

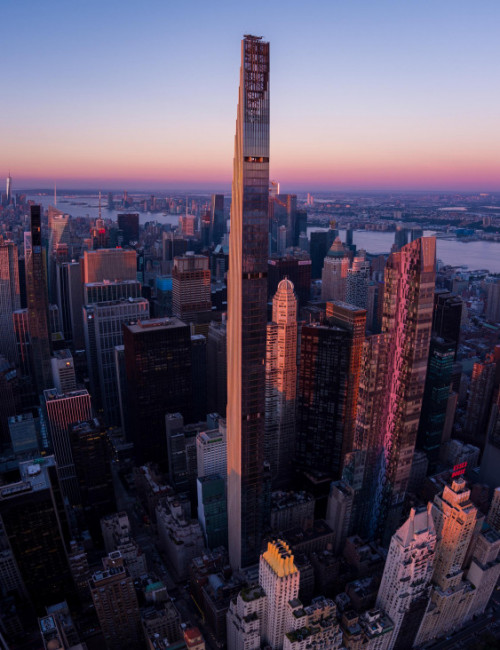

The result is one-of-a-kind superslim: an exercise in sensitive urbanism, the creative use of technology, and a pride of place that could only be found in Manhattan. Topping out at over 435 meters, when completed it will be among the tallest towers in the city, and one of the most slender skyscrapers in the world.
