Al Faisal Tower Download PDF


Click an image to view larger version.

Figures

Height: Architectural 227 m / 745 ft
Height: Occupied 219.5 m / 720 ft
Height: To Tip 227 m / 745 ft
Height: Helipad 227 m / 745 ft
Floors Above Ground 54
Floors Below Ground 2
# of Elevators 14
Top Elevator Speed 6 m/s
Tower GFA 65,282 m² / 702,690 ft²
# of Parking Spaces 553

Facts

Official Name Al Faisal Tower
Structure Type Building
Status Completed
Country Qatar
City Doha
Street Address & Map Conference Street
Building Function office
Structural Material concrete
Proposed 2007
Construction Start 2008
Completion 2011
Rankings Click arrows to view the next taller/shorter buildings
Regional Ranking #106 Tallest in Middle East
National Ranking #8 Tallest in Qatar
City Ranking #8 Tallest in Doha

Companies Involved

Owner Shaika Aisha Bent Abdullah Thani Al Thani
Developer Qatar Islamic Bank
Architect
Design Diwan Al Emara
Structural Engineer
Design Salama Structural Engineers
Peer Review BuroHappold Engineering
MEP Engineer
Design Qatari Modern Maintenance Company
Main Contractor Al Habtoor Leighton Group
Material Supplier
• Elevator KONE
• Fire Proofing Grace Construction Products

About Al Faisal Tower

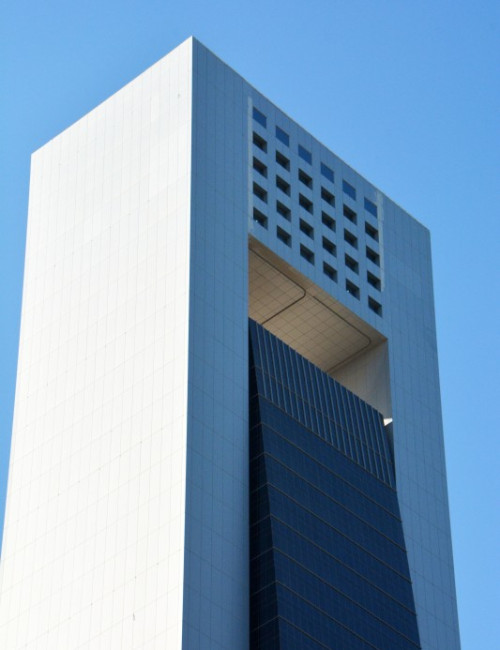

The design of Al Faisal Tower comprises a structural concrete core on either side of a suspended, curving geometric prism which houses the office spaces. The services and vertical circulation are housed in the lateral cores, allowing for an open floor plate of 670 square meters. The top four floors are designed as executive office spaces with an average of 643 square meters of unobstructed open space. The executive offices visually connect the two cores at the crown of the building, while the office “prism” sits above a dramatic void over the lobby at the base of the building and another void below the executive offices.

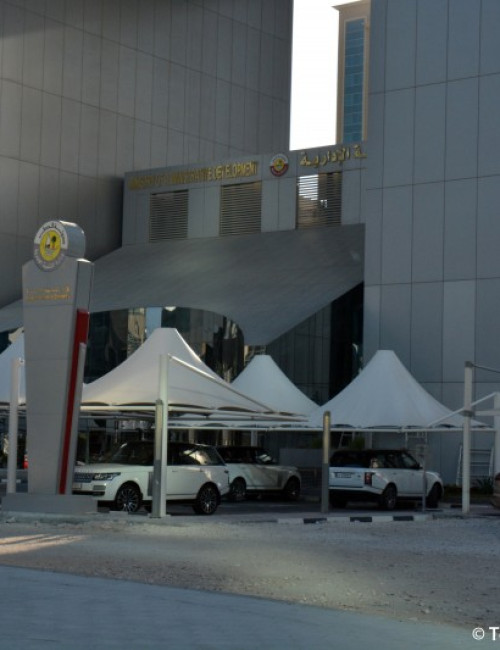

The expansive lobby at ground level is characterized by a large double-height glazed entry way which is supported by steel tube members. The remaining space is spanned with a structural concrete waffle slab, giving rhythm to the large area, which includes reception, a café, and rentable retail space.
