Comcast Center Download PDF


Click an image to view larger version.
Height: Occupied
266.7 m / 875 ft

Height: To Tip
296.7 m / 974 ft
Height: Architectural
296.7 m / 974 ft

Comcast Center Outline
Floors Above Ground
57
Floors Below Ground
3
# of Elevators
35
Tower GFA
130,064 m² / 1,399,997 ft²
# of Parking Spaces
120

Facts

Official Name Comcast Center
Structure Type Building
Status Completed
Country United States
City Philadelphia
Street Address & Map 1701 John F Kennedy Blvd
Postal Code 19103
Building Function office
Structural Material composite
  • Core: Reinforced Concrete
  • Columns: Steel
  • Floor Spanning: Steel
Construction Start 2005
Completion 2008
Rankings Click arrows to view the next taller/shorter buildings
Global Ranking #146 Tallest in the World
Regional Ranking #24 Tallest in North America
National Ranking #23 Tallest in United States
City Ranking #2 Tallest in Philadelphia

Companies Involved

Owner Comcast Corporation
Developer Liberty Property Trust
Architect
Design Robert A.M. Stern Architects
Architect of Record Kendall / Heaton Associates
Structural Engineer
Design Thornton Tomasetti
MEP Engineer
Design Paul H. Yeomans, Inc.
Main Contractor LF Driscoll
Other Consultant
Façade Enclos Corp.
• LEED Atelier Ten
• Vertical Transportation thyssenkrupp
• Wind Alan G. Davenport Wind Engineering Group; RWDI

About Comcast Center

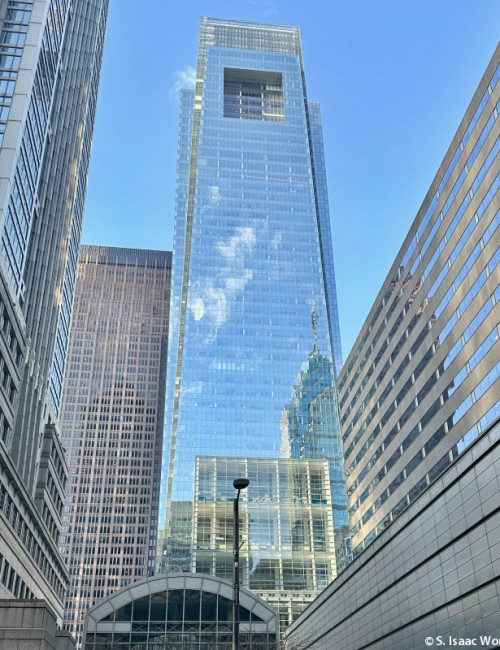

Comcast Center is the new headquarters for the Comcast Corporation, with typical floor plates ranging between 2,140 and 2,600 square meters (23,000 and 28,000 square feet). Taking the form of a faceted obelisk, the tower is clad in silvery high-performance glass with ultra-clear, low-iron glass at the building’s corners and crown. The Comcast Center and its south-facing, half-acre plaza straddles the underground tracks and concourse of Suburban Station —Philadelphia’s primary commuter rail gateway.

A 110-foot-high, light-flooded public winter garden connects the concourse with its shops and food hall to the tower and plaza above. The winter garden features a double-skin glass curtain wall with sunscreens and louvers which optimize daylight and views while modulating daily and seasonal thermal performance. Radiant heating, thermal extraction, and displacement ventilation combine to provide exceptional energy performance for this civic-scaled space. Three 3-story “sky atria” in the lower portion of the tower’s south façade overlook the plaza and provide tenants with unique and identifiable homes. The building is expected to receive LEED-CS Certification.
