385
Global
Height rank
The Residences at Marina Gate II
Dubai United Arab Emirates
Height 262.02 m / 860 ft
Floors 66
Official Name

The current legal building name.

The Residences at Marina Gate II
Other Names

Other names the building has commonly been known as, including former names, common informal names, local names, etc.

Marina Gate II, Marina Gate Residential Tower 2
Name of Complex

A complex is a group of buildings which are designed and built as pieces of a greater development.

Type

CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications / Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH 'Tallest Buildings' lists.

Building
Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished
Completed, 2019
Country

The CTBUH follows the United Nations's definition of Country, and thus uses the lists and codes established by that organization.

City

The CTBUH follows the United Nations's definition of City, and thus uses the lists and codes established by that organization.

Postal Code
71501
Function

A single-function tall building is defined as one where 85% or more of its usable floor area is dedicated to a single usage. Thus a building with 90% office floor area would be said to be an "office" building, irrespective of other minor functions it may also contain.

A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.

residential
Structural Material

Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered a “steel” structure as the concrete elements are not acting as the primary structure.

Reinforced Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars.

Precast Concrete
Both the main vertical/lateral structural elements and the floor spanning system are constructed from steel reinforced concrete which has been precast as individual components and assembled together on-site.

Mixed-Structure
Utilizes distinct systems (e.g. steel, concrete, timber), one on top of the other. For example, a steel/concrete indicates a steel structural system located on top of a concrete structural system, with the opposite true of concrete/steel.

Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used in a composite building’s core, columns, and floor spanning separately.

concrete
Dubai Green Building Regulations and Specification
Height

Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."

Architectural
262.02 m / 860 ft
To Tip
262.02 m / 860 ft
Occupied
249.42 m / 818 ft
Floors Above Ground

The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).

66
Floors Below Ground

The number of floors below ground should include all major floors located below the ground floor level.

2
# of Apartments

Number of Apartments refers to the total number of residential units (including both rental units and condominiums) contained within a particular building.

519
# of Parking Spaces

Number of Parking Spaces refers to the total number of car parking spaces contained within a particular building.

694
# of Elevators

Number of Elevators refers to the total number of elevator cars (not shafts) contained within a particular building (including public, private and freight elevators).

11
Tower GFA

Tower GFA refers to the total gross floor area within the tower footprint, not including adjoining podiums, connected buildings or other towers within the development.

800,249 m² / 8,613,809 ft²
Rankings
#
385
Tallest in the World
#
70
Tallest in Middle East
#
59
Tallest in United Arab Emirates
#
50
Tallest in Dubai
#
65
Tallest Residential Building in the World
#
25
Tallest Residential Building in Middle East
#
25
Tallest Residential Building in United Arab Emirates
#
22
Tallest Residential Building in Dubai
#
155
Tallest Concrete Building in the World
#
56
Tallest Concrete Building in Middle East
#
50
Tallest Concrete Building in United Arab Emirates
#
41
Tallest Concrete Building in Dubai
Construction Schedule
2014

Proposed

2016

Construction Start

2019

Completed

Architect
Structural Engineer
MEP Engineer

Sealants

Owner/Developer
Select Group
Architect
Structural Engineer
MEP Engineer
Al Jaber; ALEC
Cladtech International

Foundation

Swissboring Overseas Piling Corp.

Foundation Equipment

Soilmec

Sealants

CTBUH Initiatives

CTBUH Releases Year in Review: Tall Trends of 2019


12 December 2019 - CTBUH Research

Research

12 December 2019

CTBUH Research

The year 2019 was remarkable for the tall building industry, with 26 supertall buildings (300 meters or taller) completed, the most in any year. This...

About The Residences at Marina Gate II

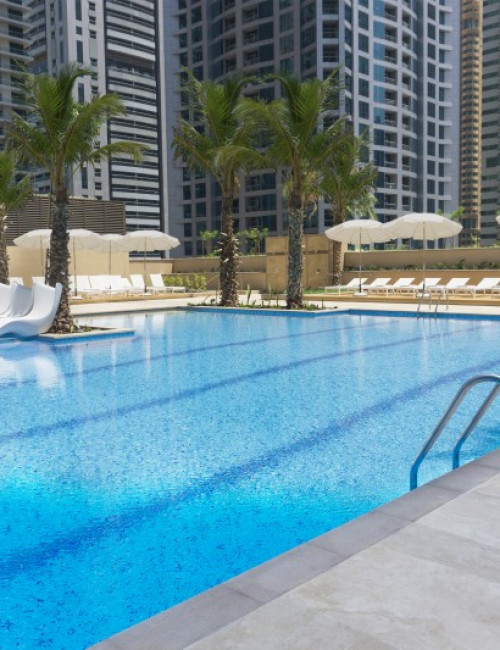

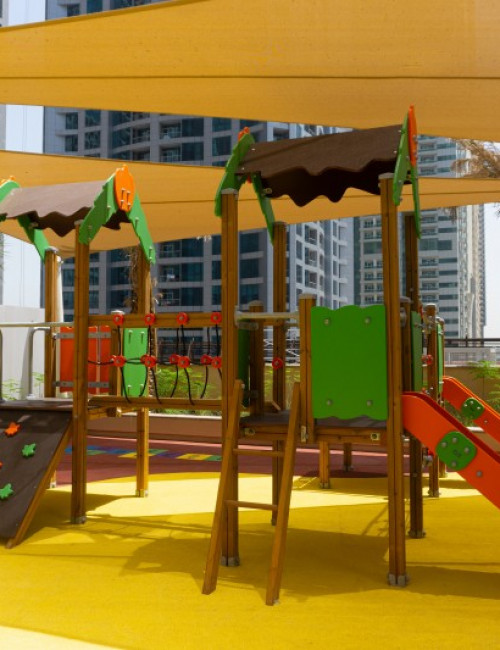

The second phase within the Residences at Marina Gate complex, The Residences at Marina Gate II is the tallest building within a trio of towers standing beside the Dubai Marina waterfront. The three towers are connected through a terraced, multi-level podium featuring villas, recreational amenities and over 135,000 square meters of retail space aligned to The Marina Walk, a pedestrian promenade encircling the extensive man-made waterway passing through the center of the namesake high-rise district.

The three reinforced concrete towers feature floor slab edges extending beyond glass curtain wall facades to form a series of large balconies, accented by vertical and horizontal fins enhancing the visual texture of the building exteriors. Each of the three towers stand more than 200 meters above the east end of the waterway and are joined by multiple nearby supertall buildings, which collectively form the tallest node within the Marina district’s skyline.
