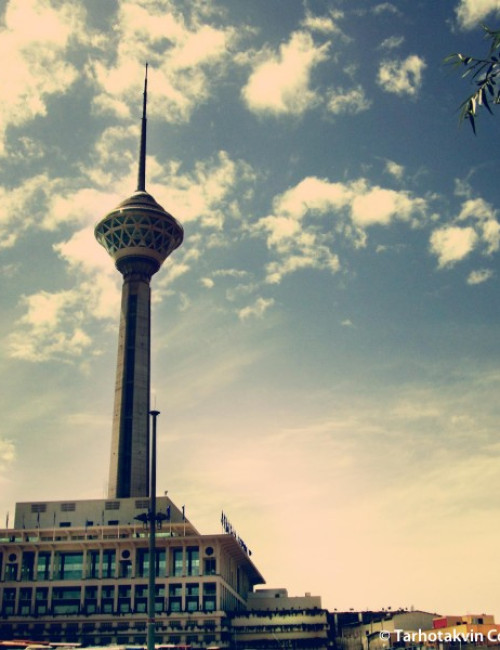

Milad Telecomm Tower
Tehran
mohammad_ramezani.jpg)
mohammad_ramezani.jpg)
- CTBUH Drawing
- Facts
-
Metrics
You must be a CTBUH Member to view this resource.
Height
1
To Tip:
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).
435 m
/ 1,427 ft
2
Architectural:
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."
435 m
/ 1,427 ft
3
Occupied:
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.
302.7 m
/ 993 ft
1
2
3
Floors
Below Ground
The number of floors below ground should include all major floors located below the ground floor level.
2
Official Name
The current legal building name.
Milad Telecomm Tower
Other Names
Other names the building has commonly been known as, including former names, common informal names,
local names, etc.
Milad Tower, Tehran Tower, Borj-e Milad
Type
CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications /
Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable
floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the
structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH
'Tallest Buildings' lists.
Tower
Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished
Completed
Completion
2009
Country
The CTBUH follows the United Nations's definition of Country, and thus
uses the lists and codes established by that organization.
City
The CTBUH follows the United Nations's definition of City, and thus uses the
lists and codes established by that organization.
Function
A single-function tall building is defined as one where 85% or more of its usable floor area is
dedicated to a single usage. Thus a building with 90% office floor area would be said to be an
"office" building, irrespective of other minor functions it may also contain.
A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.
A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.
Telecommunications / Observation
Structural Material
All-Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.
All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.
All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.
Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.
Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.
All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.
All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.
Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.
Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.
All-Concrete
Height
Architectural
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the architectural top of the building, including spires, but not including antennae, signage,
flag poles or other functional-technical equipment. This measurement is the most widely utilized
and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of
the "World's Tallest Buildings."
435 m / 1,427 ft
To Tip
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the highest point of the building, irrespective of material or function of the highest element
(i.e., including antennae, flagpoles, signage and other functional-technical equipment).
435 m
/ 1,427 ft
Occupied
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the highest occupied floor within the building.
302.7 m
/ 993 ft

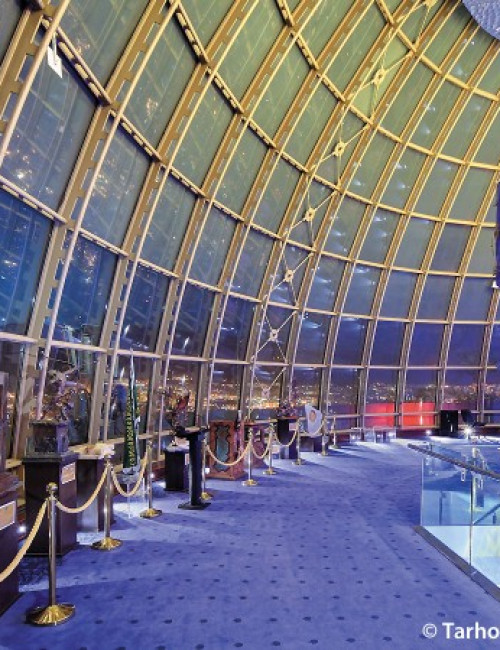

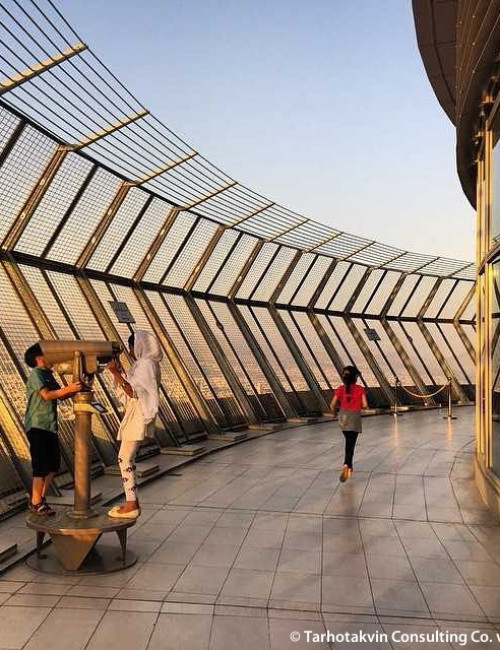

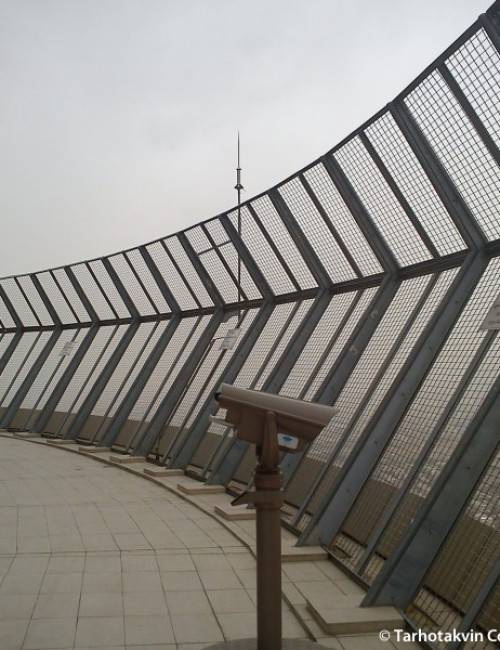

Observatory
302.7 m
/ 993 ft
Floors Below Ground
The number of floors below ground should include all major floors located below the ground floor
level.
2
# of Elevators
Number of Elevators refers to the total number of elevator cars (not shafts) contained within a
particular building (including public, private and freight elevators).
6
Top Elevator Speed
Top Elevator Speed refers to the top speed capable of being achieved by an elevator within a
particular building, measured in meters per second.
7 m/s
Tower GFA
Tower GFA refers to the total gross floor area within the tower footprint, not including adjoining
podiums, connected buildings or other towers within the development.
35,000 m² / 376,737 ft²
Construction Schedule
1999
Construction Start
2009
Completed
Other Consultant
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Wind
Material Supplier
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Elevator
Façade Maintenance Equipment
You must be a CTBUH Member to view this resource.
Owner/Developer
Tehran Municipality
Architect
Design
Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Tarhotakvin Consulting Co.
Structural Engineer
Design
The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Bahman Haghighi
Contractor
Main Contractor
The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.
Boland Payeh Co.; Heydari Sazeh Co
Other Consultant
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Wind
Material Supplier
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Elevator
Façade Maintenance Equipment
