1278
Global
Height rank

TaiKoo Hui Tower 1

Guangzhou
Height 212.0 m / 695 ft
Floors 40
Official Name
The current legal building name.

TaiKoo Hui Tower 1

Name of Complex
A complex is a group of buildings which are designed and built as pieces of a greater development.

TaiKoo Hui

Type
CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications / Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH 'Tallest Buildings' lists.

Building

Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished

Completed

Completion

2011

Country
The CTBUH follows the United Nations's definition of Country, and thus uses the lists and codes established by that organization.

China

City
The CTBUH follows the United Nations's definition of City, and thus uses the lists and codes established by that organization.

Guangzhou

Address

385 Tianhe Road

Function
A single-function tall building is defined as one where 85% or more of its usable floor area is dedicated to a single usage. Thus a building with 90% office floor area would be said to be an "office" building, irrespective of other minor functions it may also contain.

A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.

office

Structural Material
Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered a “steel” structure as the concrete elements are not acting as the primary structure.

Reinforced Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars.

Precast Concrete
Both the main vertical/lateral structural elements and the floor spanning system are constructed from steel reinforced concrete which has been precast as individual components and assembled together on-site.

Mixed-Structure
Utilizes distinct systems (e.g. steel, concrete, timber), one on top of the other. For example, a steel/concrete indicates a steel structural system located on top of a concrete structural system, with the opposite true of concrete/steel.

Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used in a composite building’s core, columns, and floor spanning separately.

composite

Core
Reinforced Concrete
Columns
Concrete Encased Steel
Floor Spanning
Steel
Energy Label

LEED Gold

Official Website

Taikoo Hui

Height
Architectural
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."

212.0 m / 695 ft

To Tip
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).
212.0 m / 695 ft
Occupied
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.
184.5 m / 605 ft
Floors Above Ground
The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).

40

Floors Below Ground
The number of floors below ground should include all major floors located below the ground floor level.

4

# of Elevators
Number of Elevators refers to the total number of elevator cars (not shafts) contained within a particular building (including public, private and freight elevators).

26

Rankings
#
1278
Tallest in the World
#
33
Tallest in Guangzhou
#
581
Tallest Office Building in the World
#
374
Tallest Office Building in Asia
#
23
Tallest Office Building in Guangzhou
#
447
Tallest Composite Building in the World
#
367
Tallest Composite Building in Asia
#
21
Tallest Composite Building in Guangzhou
Construction Schedule
2001

Proposed

2007

Construction Start

2011

Completed

Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.

MEP Engineer
(not specified)
Project Manager

The CTBUH lists a project manager when a specific firm has been commissioned to oversee this aspect of a tall building’s design/construction. When the project management efforts are handled by the developer, main contract, or architect, this field will be omitted.

Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.

Developer
Guangzhou Da Yang Properties; Swire Properties Limited
Architect
Design

Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.

Arquitectonica
Architect of Record

Usually takes on the balance of the architectural effort not executed by the "Design Architect," typically responsible for the construction documents, conforming to local codes, etc. May often be referred to as "Executive," "Associate," or "Local" Architect, however, for consistency CTBUH uses the term "Architect of Record" exclusively.

Guangzhou Design Institute
Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.

MEP Engineer
(not specified)
Project Manager

The CTBUH lists a project manager when a specific firm has been commissioned to oversee this aspect of a tall building’s design/construction. When the project management efforts are handled by the developer, main contract, or architect, this field will be omitted.

Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.

Other Consultant

Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).

Façade

These are firms that consult on the design of a building's façade. May often be referred to as "Cladding," "Envelope," "Exterior Wall," or "Curtain Wall" Consultant, however, for consistency CTBUH uses the term "Façade Consultant" exclusively.

Hugh Dutton Associes
Material Supplier

Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).

Steel
China Construction Steel Structure Corporation

Videos

17 October 2016 | Guangzhou

The Roots of Tall Buildings: Connecting the City

This presentation investigated the integration of tall tower, mixed-use developments and how they connect with the city and the public when they meet the ground....

Research

17 October 2016

Cities to Megacities: Perspectives

CTBUH 2016 Conference Speakers

The CTBUH 2016 International Conference is being held in the three cities of the Pearl River Delta, the world’s largest “megacity,” projected to have 120...

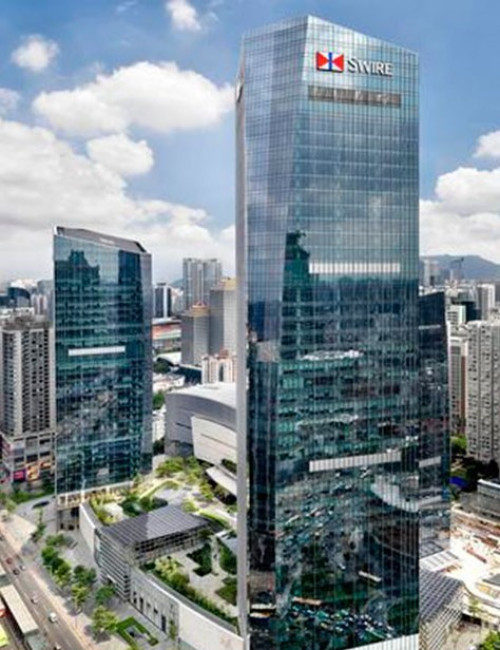

About TaiKoo Hui Tower 1

Located in the Tianhe Central Business District of Guangzhou – one of southern China’s largest and most active commercial centers – stands TaiKoo Hui Tower 1. As part of a larger five-component, mixed-use development just north of Tianhe Road and west of Tianhe Dong Road, TaiKoo Hui Tower 1 is the tallest of the complex’s two office towers.

The tower’s design is predominantly rectangular with wedges cut out of its southeastern and northwestern corners, giving the tower a defined presence on its most prominent street entrance along Tianhe Road. It sports a blue reflective glass façade interrupted by a series of vertical steel mullions that add tempo and regularity to the tower’s otherwise uniform exterior. The double-height ground floor is equipped with clear transparent glazing, offering passersby a modest peek of the building’s entrance lobby, which features an eye-catching array of solid white columns.

Notably, the podium roof contains over 8,000 square meters of landscaped gardens, offering a comfortable and pleasant environment for leisure and recreational activities. Other environmentally friendly features include indirect lighting systems with adjustable illumination levels and large double-glazed low-e glass curtain walls to ensure maximum natural light penetration with minimal energy loss, heat gain, and noise.

Together, the TaiKoo Hui Complex’s two office towers provide tenants with over 160,000 square meters of premium Grade A office space. Both towers also connect internally to a shopping mall, a 5-star Mandarin Oriental Hotel, the Guangzhou Metro system, and the local Bus Rapid Transit (BRT) system, allowing patrons quick and easy access to a variety of amenities and the city at large.
