Torre Diagonal ZeroZero

Barcelona
  • Facts
  • Login

    You must be a CTBUH Member to view this resource.

    Metrics
Height 110 m / 361 ft
Floors 24
Official Name
The current legal building name.

Torre Diagonal ZeroZero

Other Names
Other names the building has commonly been known as, including former names, common informal names, local names, etc.

Diagonal ZeroZero, Torre Telefónica Diagonal ZeroZero, Zero Zero Tower

Type
CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications / Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH 'Tallest Buildings' lists.

Building

Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished

Completed

Completion

2011

Country
The CTBUH follows the United Nations's definition of Country, and thus uses the lists and codes established by that organization.

Spain

City
The CTBUH follows the United Nations's definition of City, and thus uses the lists and codes established by that organization.

Barcelona

Address

Avinguda Diagonal, 00

Function
A single-function tall building is defined as one where 85% or more of its usable floor area is dedicated to a single usage. Thus a building with 90% office floor area would be said to be an "office" building, irrespective of other minor functions it may also contain.

A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.

Office

Structural Material
All-Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.

All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.

All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.

Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.

Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.

Concrete-Steel Composite

Height
Architectural
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."

110 m / 361 ft

To Tip
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).
110 m / 361 ft
Occupied
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.
101.7 m / 333 ft
Floors Above Ground
The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).

24

Floors Below Ground
The number of floors below ground should include all major floors located below the ground floor level.

2

# of Parking Spaces
Number of Parking Spaces refers to the total number of car parking spaces contained within a particular building.

200

# of Elevators
Number of Elevators refers to the total number of elevator cars (not shafts) contained within a particular building (including public, private and freight elevators).

6

Tower GFA
Tower GFA refers to the total gross floor area within the tower footprint, not including adjoining podiums, connected buildings or other towers within the development.

33,927 m² / 365,187 ft²

Rankings

  • By Location
#
42
Tallest in Spain
#
5
Tallest in Barcelona

Construction Schedule

2006

Proposed

2007

Construction Start

2011

Completed

Material Supplier

Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Aluminium
Schüco
Elevator
Thyssen AG
Façade Maintenance Equipment
CoxGomyl
Owner
Current
Emperador Properties
Past
Consorci de la Zona Franca de Barcelona; Telefónica de España, S.A.U.
Developer
Consorci de la Zona Franca de Barcelona
Architect
Design

Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Estudi Massip-Bosch Arquitectes
Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
MC2 Estudio de Ingenieria
MEP Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Master Ingenieria
Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.
FCC
Other Consultant

Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Quantity Surveyor
Aumedes DAP SLP
Security
Aumedes DAP SLP
Vertical Transportation
Jappsen Ingenieure GmbH
Material Supplier

Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Aluminium
Schüco
Ceiling
Armstrong World Industries
Elevator
Thyssen AG
Façade Maintenance Equipment
CoxGomyl
Steel
MARTIFER Group

About Torre Diagonal ZeroZero

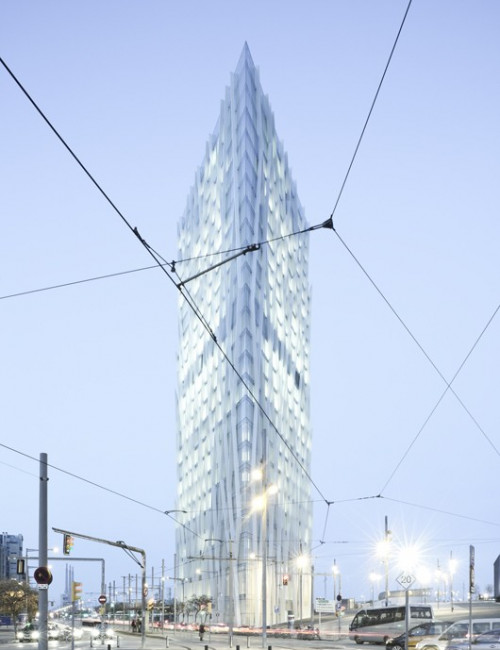

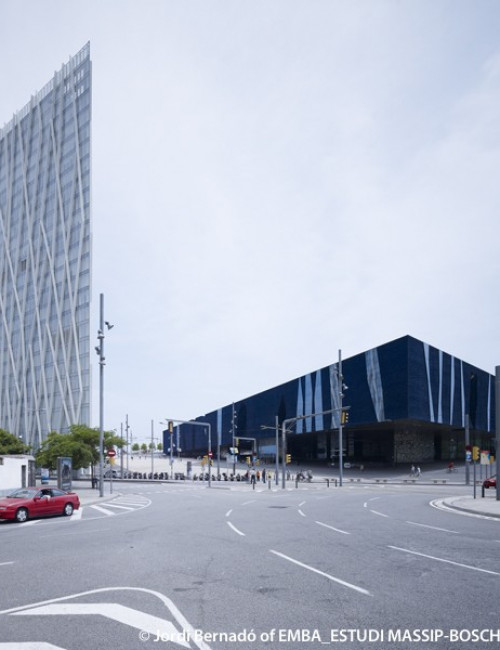

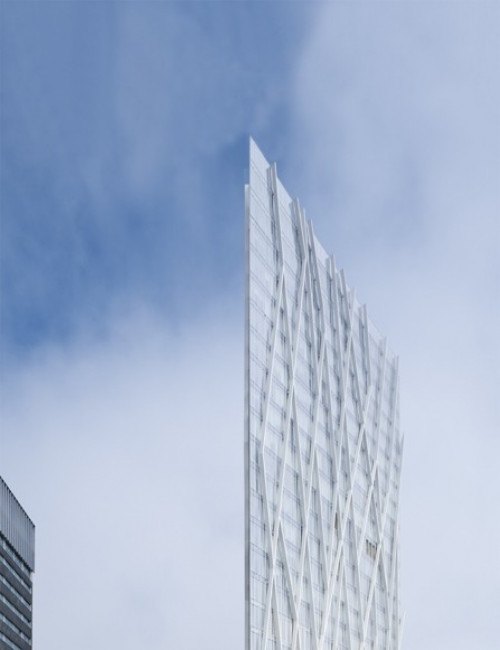

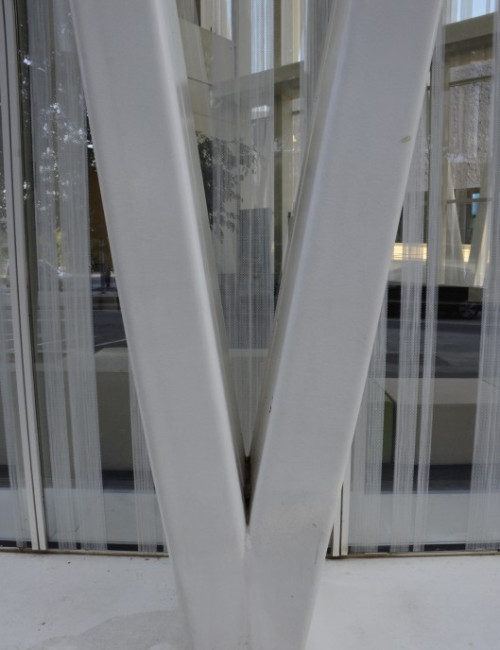

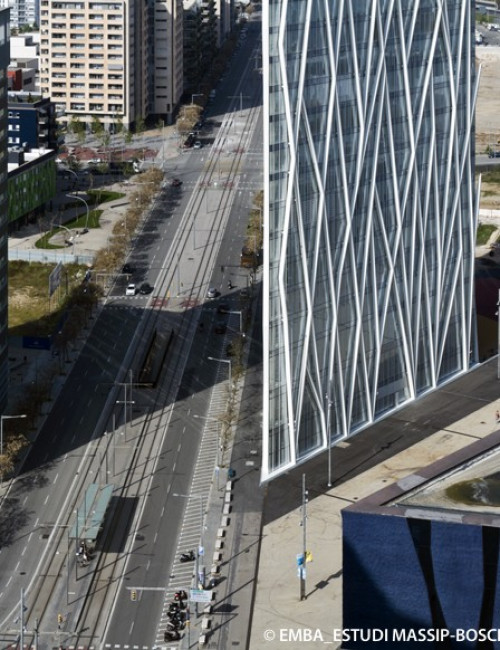

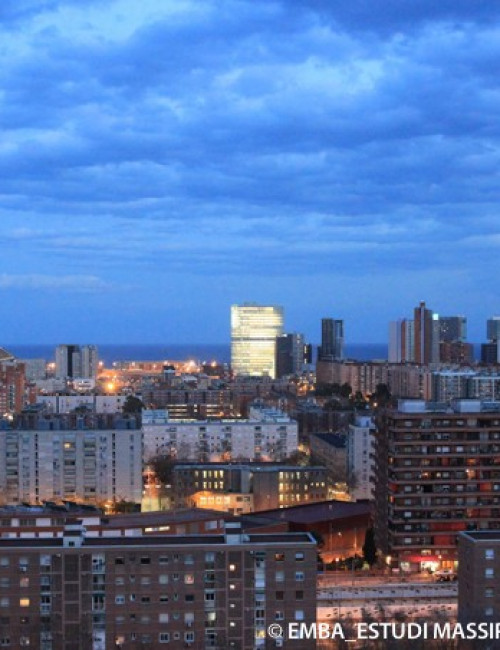

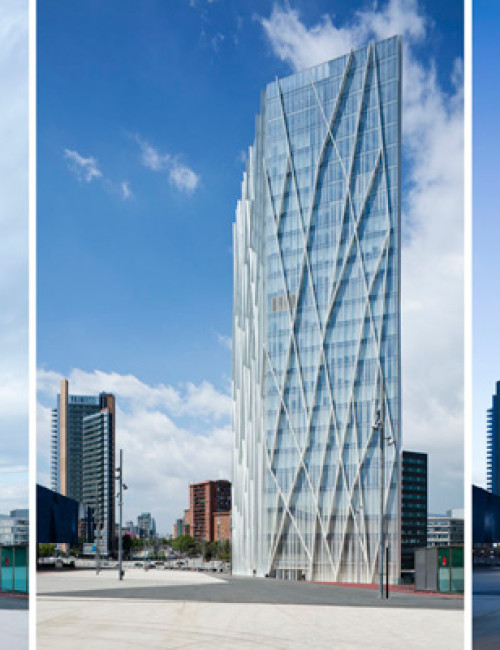

Housing its main tenant, Telefónica España, the building is located by the sea at the origin of Barcelona’s main thoroughfare, Diagonal Avenue. The building takes the linearity of the street on the perimeter as the generator of its form creating a trapezoidal prism—sharp and stylized.

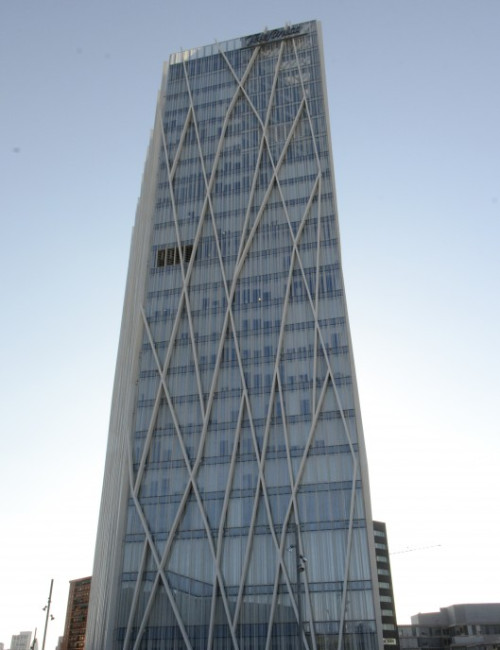

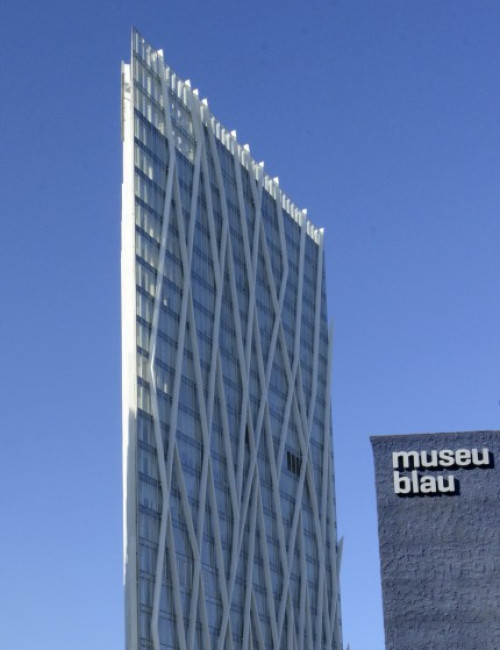

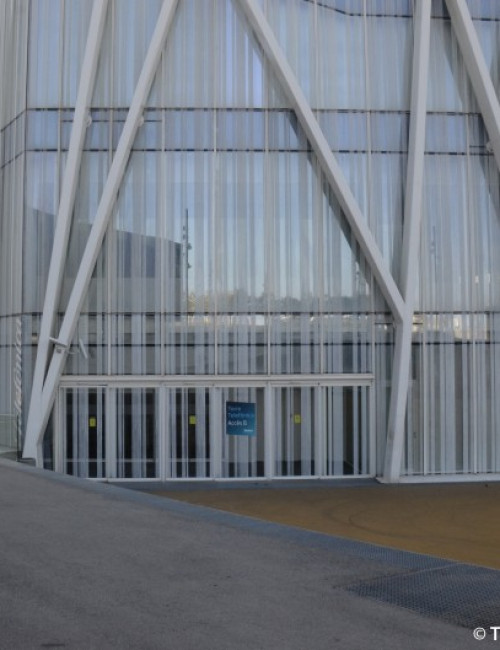

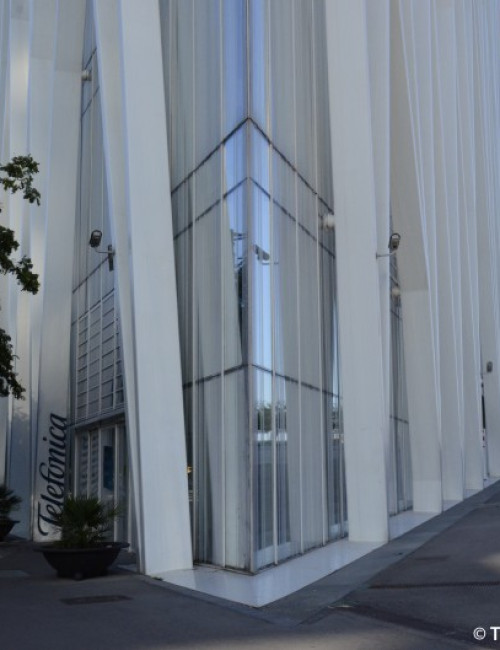

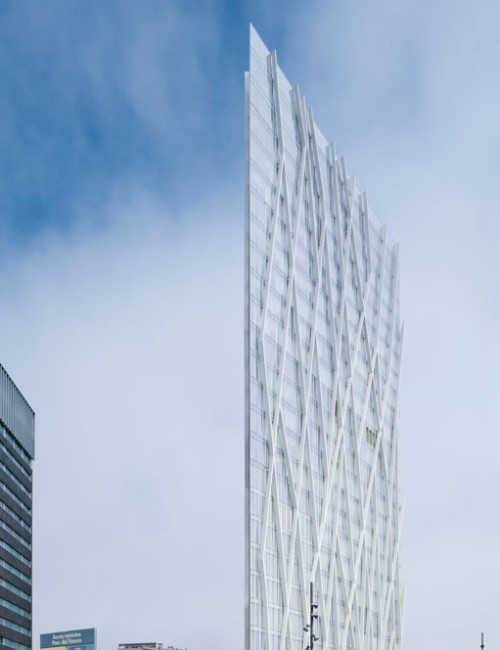

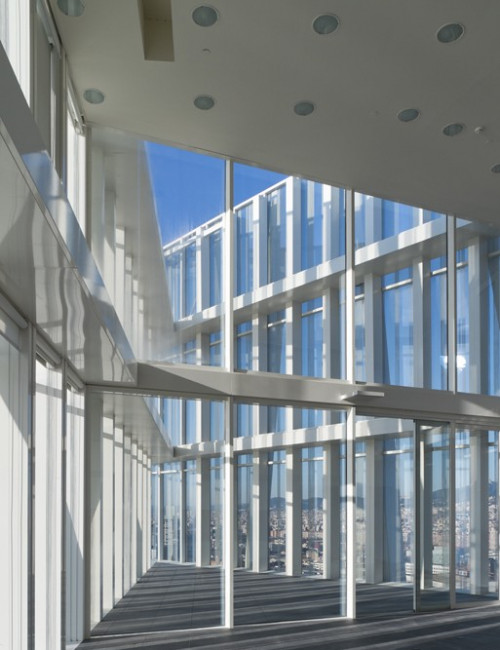

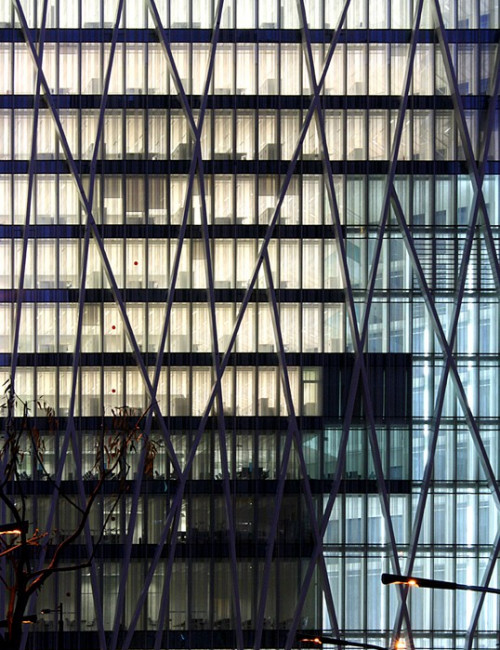

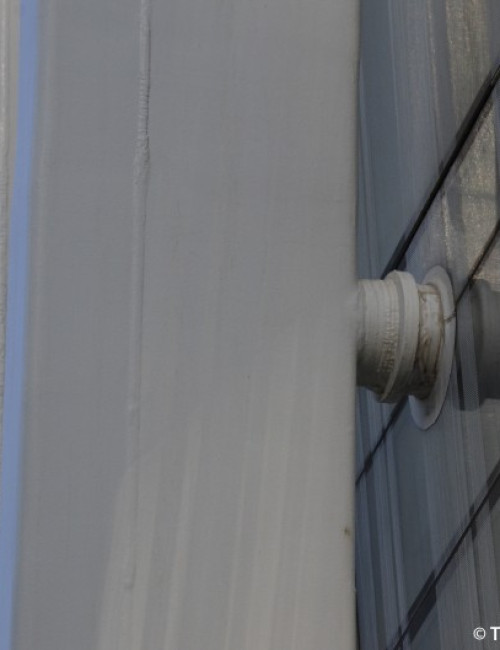

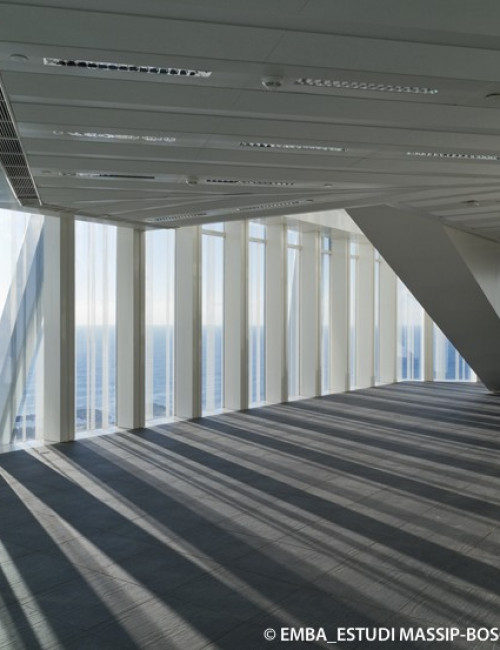

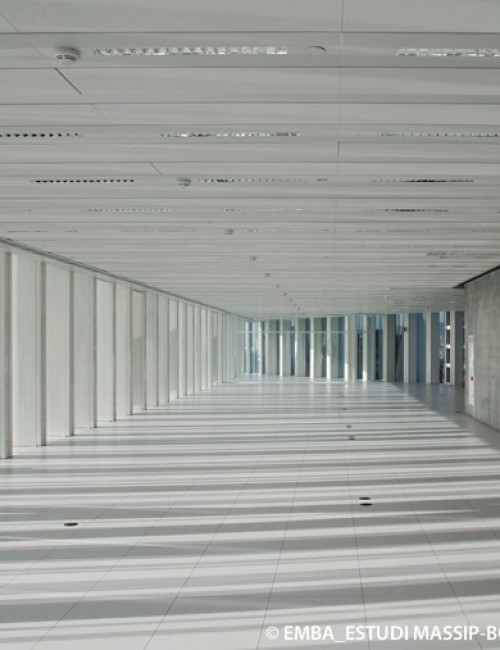

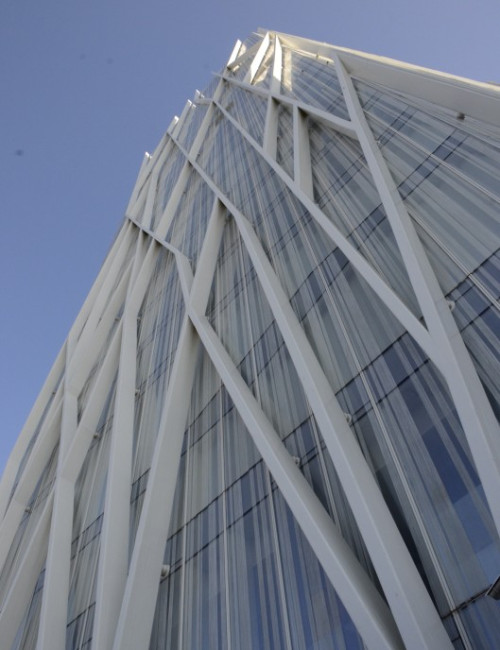

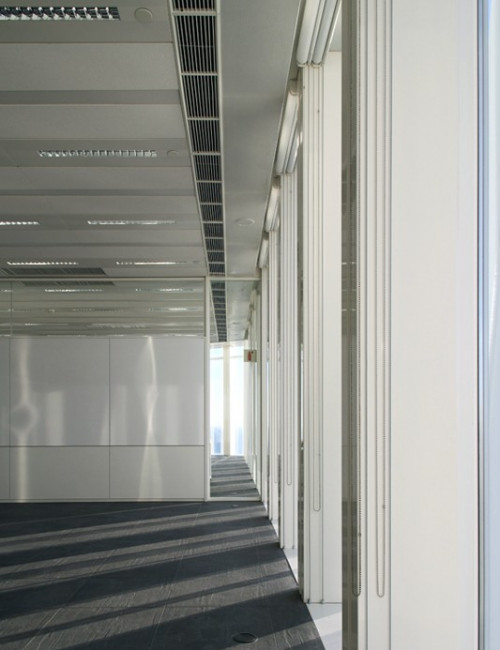

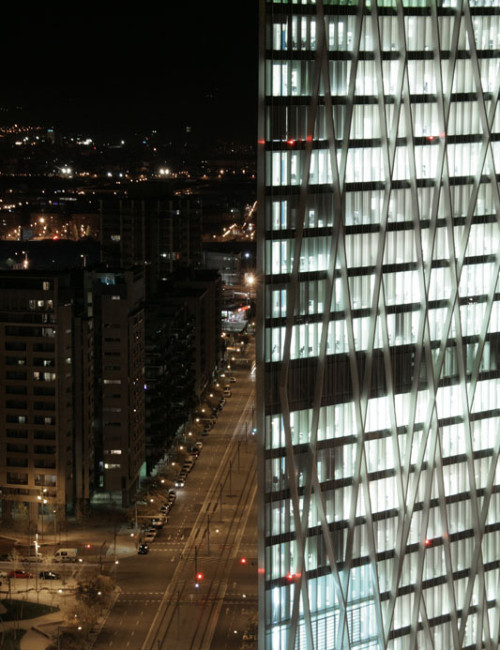

On the inner part of the façade, a series of very slender [16x16 cm (6x6 in) above the 13th floor, 16x32 cm (6x12.6 in) below] steel pillars 135 cm (53 in) apart carry the vertical loads and generate a screen to help diffuse light. An exterior rhomboidal lattice structure made of 24x68 cm (9.4x26.7 in) steel pipes supports all torsion and horizontal loads. The exterior lattice is not only a key structural element, but casts deep shadows on the façade thus reducing solar radiation. Vertical bands of white ceramic painted pattern cover 25% of the curtain wall. The style of the patterned bands was inspired by the salted spray that comes from the nearby sea. Visually the bands emphasize the slender form while further helping to control sunlight.
