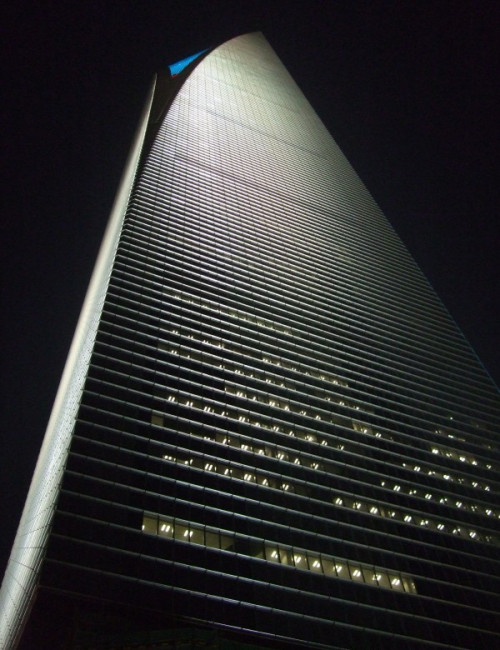

Shanghai World Financial Center Download PDF


Click an image to view larger version.
Height: Occupied
474 m / 1,555 ft

Height: To Tip
494.3 m / 1,622 ft
Height: Architectural
492 m / 1,614 ft

Shanghai World Financial Center Outline

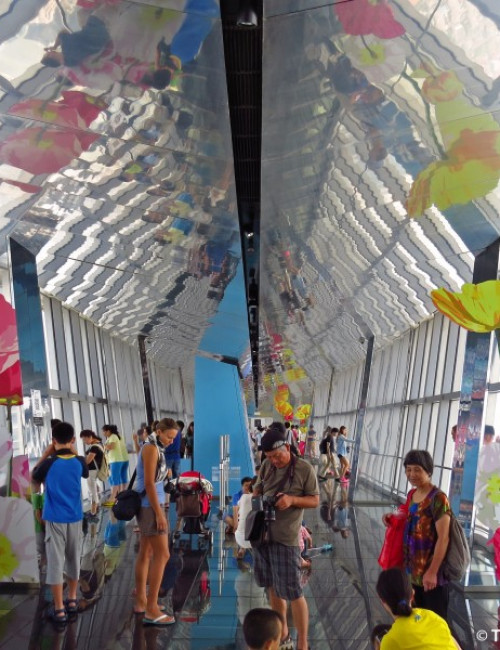

Height: Observatory
474 m / 1,555 ft
Floors Above Ground
101
Floors Below Ground
3
# of Elevators
91
Top Elevator Speed
10 m/s
Tower GFA
381,600 m² / 4,107,508 ft²
# of Parking Spaces
1,100

Facts

Official Name Shanghai World Financial Center
Other Names SWFC
Structure Type Building
Status Completed
Country China
City Shanghai
Street Address & Map No.100, Century Avenue, Pudong New Area
Postal Code 200120
Building Function hotel / office
Structural Material composite
Proposed 1994
Construction Start 1997
Completion 2008
Official Website Shanghai World Financial Center
Rankings Click arrows to view the next taller/shorter buildings
Global Ranking #7 Tallest in the World
Regional Ranking #4 Tallest in Asia
National Ranking #3 Tallest in China
City Ranking #2 Tallest in Shanghai

Companies Involved

Owner Shanghai World Financial Center Co., Ltd.
Developer Mori Building
Architect
Design Kohn Pedersen Fox Associates; Mori Building; Irie Miyake Architects and Engineers
Architect of Record ECADI; Shanghai Modern Architectural Design Company
Structural Engineer
Design Leslie E. Robertson Associates
MEP Engineer
Design Kenchiku Setsubi Sekkei Kenkyusho
Main Contractor China State Construction Engineering Corporation; Shanghai Construction Group
Other Consultant
Façade ALT Limited; Permasteelisa Group
• Fire Rolf Jensen & Associates
• Marketing CBRE
• Quantity Surveyor Langdon & Seah
• Wind Alan G. Davenport Wind Engineering Group
• (not specified) AECOM
Material Supplier
• Cladding HALFEN
• Elevator Hitachi, Ltd.; Otis Elevator Company; thyssenkrupp; Toshiba Elevator and Building Systems Corporation (TELC)
• Façade Maintenance Equipment CoxGomyl
• Paint/Coating AkzoNobel
• Sealants Dow Corning Corporation; Momentive
• Steel ArcelorMittal

About Shanghai World Financial Center

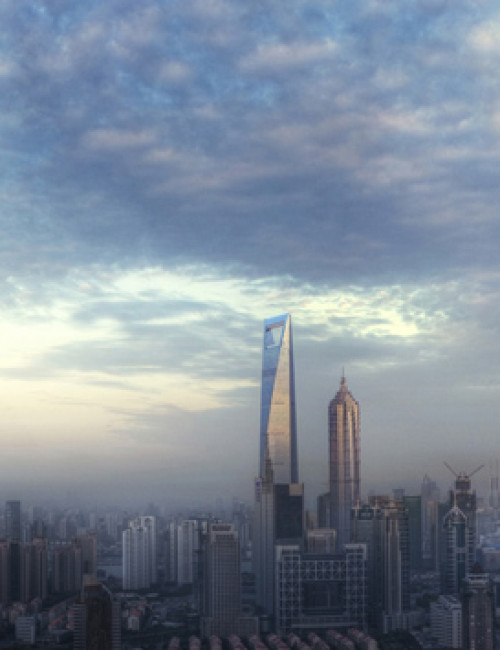

The Shanghai World Financial Center is a symbol of commerce and culture that speaks to the city’s emergence as a global capital. Located in Shanghai’s Pudong District, the mixed-used Shanghai World Financial Center is a vertical city, containing 62 office floors, conference facilities, urban retail and dining spaces, and a 174-room five-star Park Hyatt Hotel at the top—the world’s highest hotel from the 79th to 93rd floors. Above the hotel, at the 94th to 100th floors, is a visitors’ square and observatory.

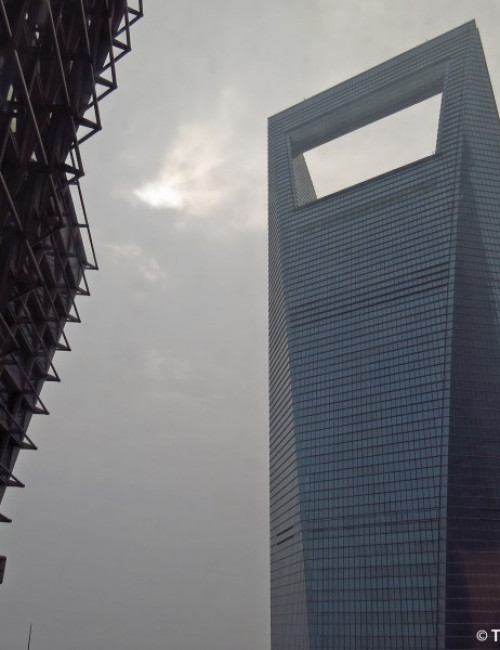

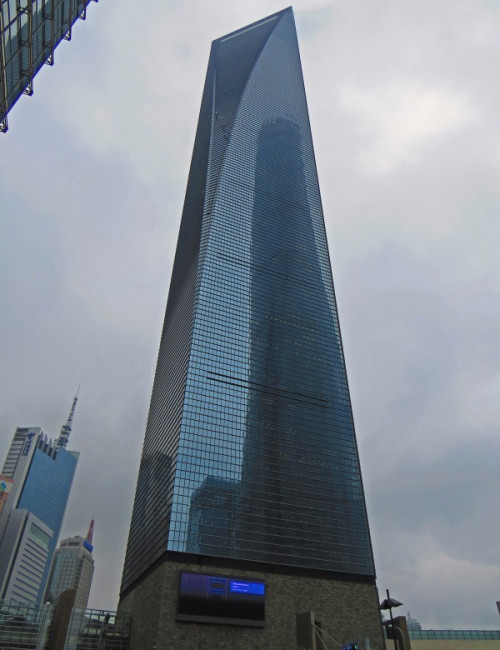

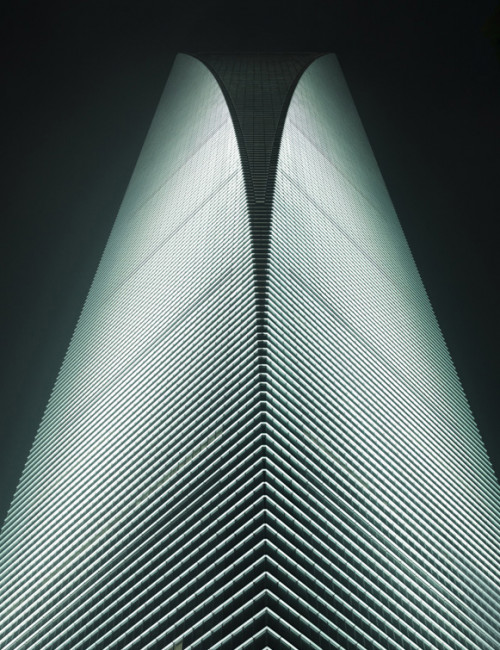

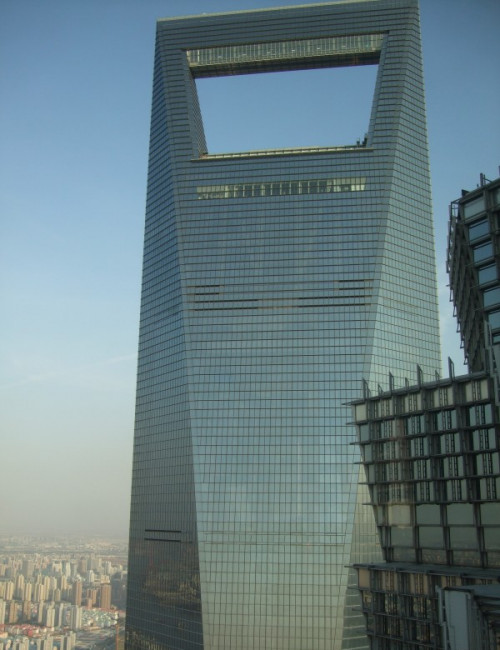

Shaped by the intersection of two sweeping arcs and a square prism—shapes representing ancient Chinese symbols of heaven and earth, respectively—the tower’s tapering form supports programmatic efficiencies, from large floor plates at its base for offices to rectilinear floors near the top for hotel rooms. Its boldest feature, the 164-foot-wide portal carved through its upper levels relieves the enormous wind pressures on the building. The project activates the ground plane through function-specific entrance volumes (e.g., hotel, office and retail) that extend from its stone-clad base. To further connect the activities of the building to the city, the retail volume is oriented toward a public park planned for an adjacent site.

Optimizing form and function was paramount to the design, integrating the structure, mechanical systems, and exterior envelope in a modular system that repeats every 13 floors to facilitate the fabrication and installation of components, and, in turn, reduce construction time, material waste, and structural inefficiencies. The purity of the tower’s design belies the inherent complexity of the various building systems within, and is readily adaptable to the changing programmatic requirements that often arise during the long timeline of such a large project, as well as to the changing needs of building users.

The project was put on hold in 1995 after the completion of the foundations. When revived in 1999 the height and base dimensions were both increased from the original design. Reinforcing the existing piles to accommodate these changes would have been possible but costly. The new, taller structure would not only have to be made lighter, but would need to resist higher wind loads, which increase exponentially with height.

The project’s structural engineer developed a new system, employing composite mega-columns, diagonal mega-braces, steel out-riggers, belt trusses, and core wall trusses, the pile loads were redistributed to accept increased lateral loads from wind and earthquake. The stiffness of the lateral force-resisting system of the perimeter wall was increased, and as such, the original design for the perimeter framing was abandoned in favor of a diagonal-braced frame with added outrigger trusses coupled to the columns of the mega-structure. This enabled the weight of the building to be reduced by more than 10% and resulted in a reduced cost for the structure, provided for speedier construction, and significantly reduced the material that went into the building and thus made the building even more environmentally friendly.
