Ping An Finance Center
Shenzhen
This project is a redesign and replaced Ping An Finance Center (Previous)
pinganfinancecenter.jpg)
- CTBUH Drawing
- Facts
-
Metrics
You must be a CTBUH Member to view this resource.
Height
1
To Tip:
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).
599.1 m
/ 1,965 ft
2
Architectural:
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of the "World's Tallest Buildings."
599.1 m
/ 1,965 ft
3
Occupied:
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.
555.6 m
/ 1,823 ft
1
2
3
Floors
Above Ground
The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).
115
Below Ground
The number of floors below ground should include all major floors located below the ground floor level.
5
Height
599.1 m
/ 1,965 ft
Floors
115
Official Name
The current legal building name.
Ping An Finance Center
Other Names
Other names the building has commonly been known as, including former names, common informal names,
local names, etc.
PAFC, Ping An International Finance Center Tower 1
Name of Complex
A complex is a group of buildings which are designed and built as pieces of a greater development.
Type
CTBUH collects data on two major types of tall structures: 'Buildings' and 'Telecommunications /
Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable
floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the
structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CTBUH
'Tallest Buildings' lists.
Building
Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished
Completed
Completion
2017
Country
The CTBUH follows the United Nations's definition of Country, and thus
uses the lists and codes established by that organization.
City
The CTBUH follows the United Nations's definition of City, and thus uses the
lists and codes established by that organization.
Function
A single-function tall building is defined as one where 85% or more of its usable floor area is
dedicated to a single usage. Thus a building with 90% office floor area would be said to be an
"office" building, irrespective of other minor functions it may also contain.
A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.
A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CTBUH "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.
Office
Structural Material
All-Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.
All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.
All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.
Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.
Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.
All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.
All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.
Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.
Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CTBUH database breaks out the materials used within a composite building’s primary structural elements.
Concrete-Steel Composite
Energy Label
LEED Gold
Official Website
Height
Architectural
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the architectural top of the building, including spires, but not including antennae, signage,
flag poles or other functional-technical equipment. This measurement is the most widely utilized
and is employed to define the Council on Tall Buildings and Urban Habitat (CTBUH) rankings of
the "World's Tallest Buildings."
599.1 m / 1,965 ft
To Tip
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the highest point of the building, irrespective of material or function of the highest element
(i.e., including antennae, flagpoles, signage and other functional-technical equipment).
599.1 m
/ 1,965 ft
Occupied
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to
the highest occupied floor within the building.
555.6 m
/ 1,823 ft
Observatory
562.2 m
/ 1,844 ft
Floors Above Ground
The number of floors above ground should include the ground floor level and be the number of main
floors above ground, including any significant mezzanine floors and major mechanical plant floors.
Mechanical mezzanines should not be included if they have a significantly smaller floor area than
the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general
roof area should not be counted. Note: CTBUH floor counts may differ from published accounts, as it
is common in some regions of the world for certain floor levels not to be included (e.g., the level
4, 14, 24, etc. in Hong Kong).
115
Floors Below Ground
The number of floors below ground should include all major floors located below the ground floor
level.
5
# of Parking Spaces
Number of Parking Spaces refers to the total number of car parking spaces contained within a
particular building.
1100
# of Elevators
Number of Elevators refers to the total number of elevator cars (not shafts) contained within a
particular building (including public, private and freight elevators).
80
Top Elevator Speed
Top Elevator Speed refers to the top speed capable of being achieved by an elevator within a
particular building, measured in meters per second.
10 m/s
Tower GFA
Tower GFA refers to the total gross floor area within the tower footprint, not including adjoining
podiums, connected buildings or other towers within the development.
459,187 m² / 4,942,648 ft²
Rankings
-
By function
You must be a CTBUH Member to view this resource.
-
By material
You must be a CTBUH Member to view this resource.
#
5
Tallest in the World
#
3
Tallest in
Asia
#
2
Tallest in
China
#
1
Tallest in
Shenzhen

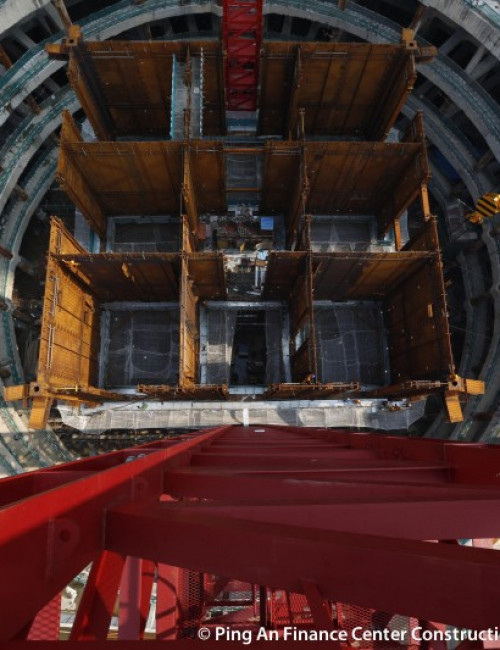

Construction Schedule
2008
Proposed
2010
Construction Start
2017
Completed
Architect
Design
Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Architect of Record
Usually takes on the balance of the architectural effort not executed by the "Design Architect," typically responsible for the construction documents, conforming to local codes, etc. May often be referred to as "Executive," "Associate," or "Local" Architect, however, for consistency CTBUH uses the term "Architect of Record" exclusively.
Structural Engineer
Design
The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Engineer of Record
The Engineer of Record takes the balance of the engineering effort not executed by the “Design Engineer,” typically responsible for construction documents, conforming to local codes, etc.
Peer Review
The Peer Review Engineer traditionally comments on the information produced by another party, and to render second opinions, but not to initiate what the design looks like from the start.
MEP Engineer
Design
The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Engineer of Record
The Engineer of Record takes the balance of the engineering effort not executed by the “Design Engineer,” typically responsible for construction documents, conforming to local codes, etc.
Other Consultant
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Façade
These are firms that consult on the design of a building's façade. May often be referred to as "Cladding," "Envelope," "Exterior Wall," or "Curtain Wall" Consultant, however, for consistency CTBUH uses the term "Façade Consultant" exclusively.
Façade Maintenance
Fire
Landscape
LEED
Property Management
Sustainability
Vertical Transportation
Wind
Material Supplier
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Façade Maintenance Equipment
Sealants
You must be a CTBUH Member to view this resource.
Owner/Developer
Ping An Real Estate Co Ltd
Architect
Design
Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Architect of Record
Usually takes on the balance of the architectural effort not executed by the "Design Architect," typically responsible for the construction documents, conforming to local codes, etc. May often be referred to as "Executive," "Associate," or "Local" Architect, however, for consistency CTBUH uses the term "Architect of Record" exclusively.
Structural Engineer
Design
The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Engineer of Record
The Engineer of Record takes the balance of the engineering effort not executed by the “Design Engineer,” typically responsible for construction documents, conforming to local codes, etc.
Peer Review
The Peer Review Engineer traditionally comments on the information produced by another party, and to render second opinions, but not to initiate what the design looks like from the start.
MEP Engineer
Design
The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Engineer of Record
The Engineer of Record takes the balance of the engineering effort not executed by the “Design Engineer,” typically responsible for construction documents, conforming to local codes, etc.
Contractor
Main Contractor
The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.
China Construction First Group Construction & Development Co., Ltd.
Other Consultant
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Façade
These are firms that consult on the design of a building's façade. May often be referred to as "Cladding," "Envelope," "Exterior Wall," or "Curtain Wall" Consultant, however, for consistency CTBUH uses the term "Façade Consultant" exclusively.
Façade Maintenance
Fire
Landscape
LEED
Lighting
Illuminate Lighting Design; Lighting Planners Associates; Beijing Fortune Lighting System Engineering Co., Ltd.
Property Management
Sustainability
Traffic
MVA Transportation, Planning & Management Consultants; MVA Transportation, Planning & Management Consultants
Vertical Transportation
J. Roger Preston Limited; Fortune Shepler Consulting
Way Finding
duttonBRAY Design Limited; Sandu Environmental Signage
Wind
Material Supplier
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Aluminium
Guangdong JMA Aluminium Profile Factory (Group) Co., Ltd.
Cladding
Hilti AG; Outokumpu; Shenyang Yuanda Aluminium Industry Engineering Co.,Ltd.
Elevator
Hitachi Elevator (China) Co,. Ltd.; KONE; Sematic S.r.l.; Schindler; Otis Elevator Company
Façade Maintenance Equipment
Fire Proofing
Grace Construction Products
Formwork
Zulin
HVAC
Feng Shen Group
Paint/Coating
Jotun
Sealants
Steel
China Construction Steel Structure Corporation; Outokumpu
CTBUH Awards & Distinctions
Best Tall Building, by Height, 400 meters and above 2019 Winner
2019 CTBUH Awards
Construction Award 2018 Award of Excellence
2018 CTBUH Awards
Best Tall Building, by Region, Asia & Australasia 2018 Award of Excellence
2018 CTBUH Awards
CTBUH Initiatives
Ping An Finance Center - World’s Tallest All-Office Building
8 April 2019 - Event
CTBUH 2019 Award of Excellence Winners Announced
5 December 2018 - Awards
Videos
31 May 2018 | Shenzhen
A Milestone in Supertall Construction
Ping An Finance Center (PAFC) is an extraordinary project, which responds to the challenges of constructing in dense urban environments. PAFC advanced nearly every dimension...
Research
20 March 2020
Interactive Study on The Tallest 20 in 2020: Then and Now
CTBUH Research
This research paper undertakes a review of the 2012 report by the Council on Tall Buildings and Urban Habitat, “Tallest 20 in 2020: Entering the...
About Ping An Finance Center
Ping An Finance Center is located in the city’s Futian District and represents a new generation of the prototypical Asian skyscraper: very tall, very dense, and hyper-connected.

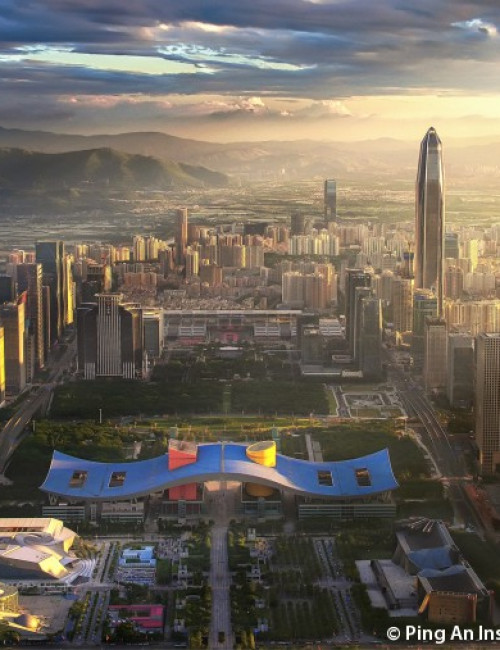

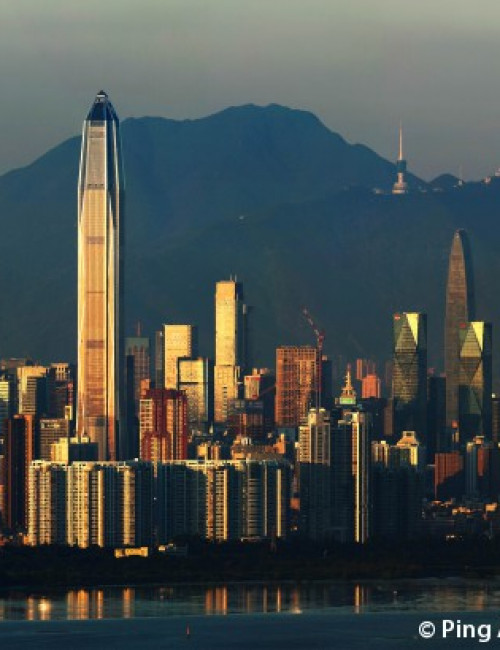

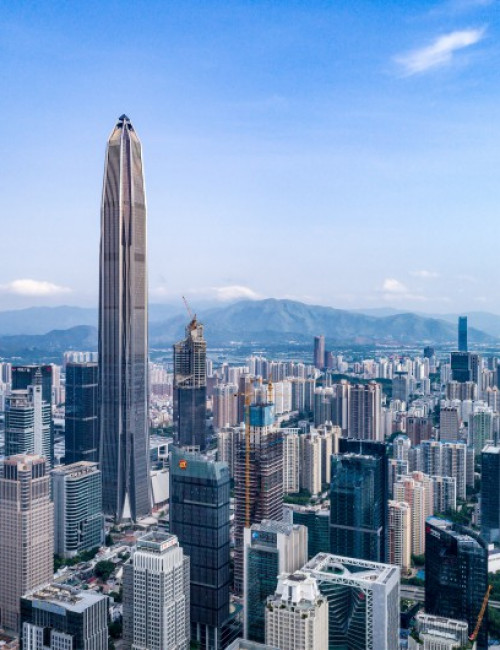

Ping An Finance Center rises from a prominent location in the center of the city, connecting seamlessly to neighboring commercial and residential properties, as well as the Pearl River Delta’s high-speed rail corridor. At its final height, the tower will symbolize a city which has witnessed unprecedented urban growth – from 300,000 people to approximately 10 million – in the 35 years since becoming China’s first Special Economic Zone.

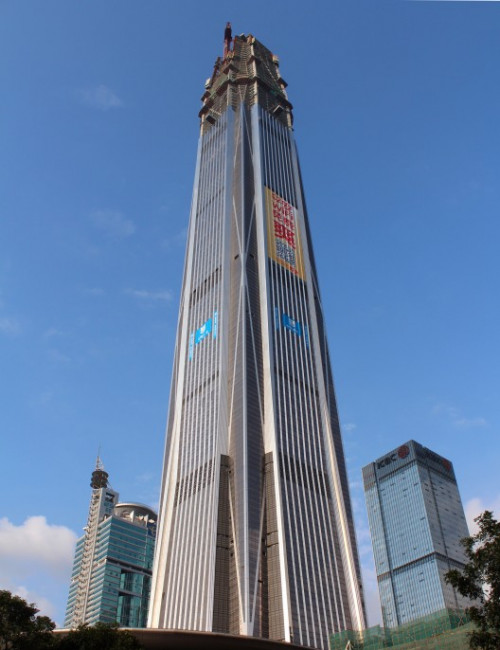

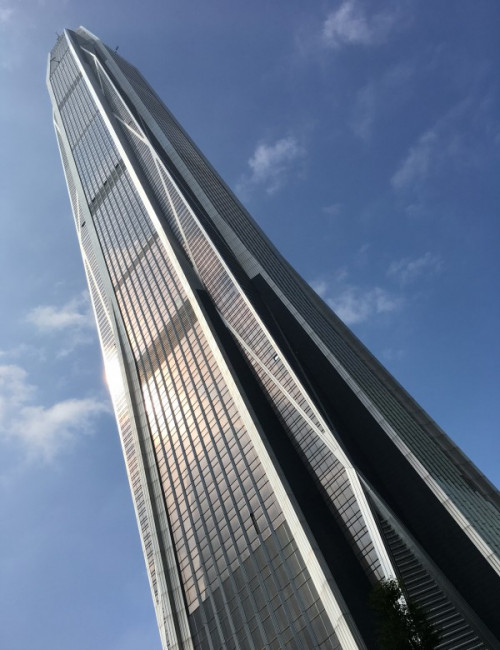

The shape of the tower is that of a taught steel cable, outstretched by the sky and the ground at once. At the top of the tower, the façades taper to form a pyramid, giving the tower a prismatic aesthetic. The form is emphasized by eight composite super-columns that extrude beyond the building envelope. This design is not only visually appealing, but also practical. The streamlined shape of the tower improves both structural and wind performance, reducing baseline wind loads by 35%.

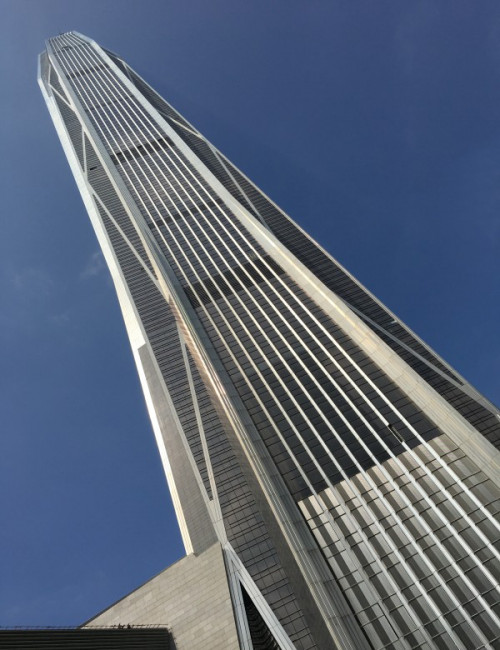

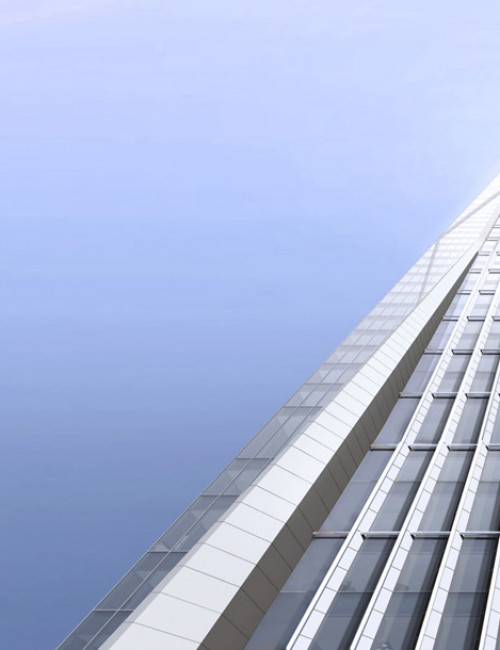

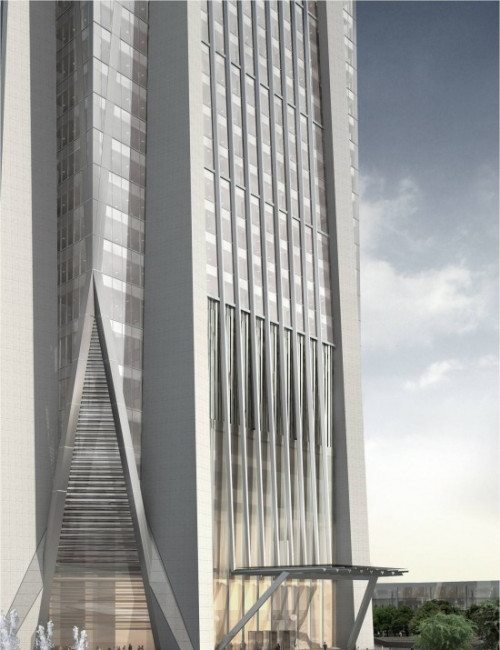

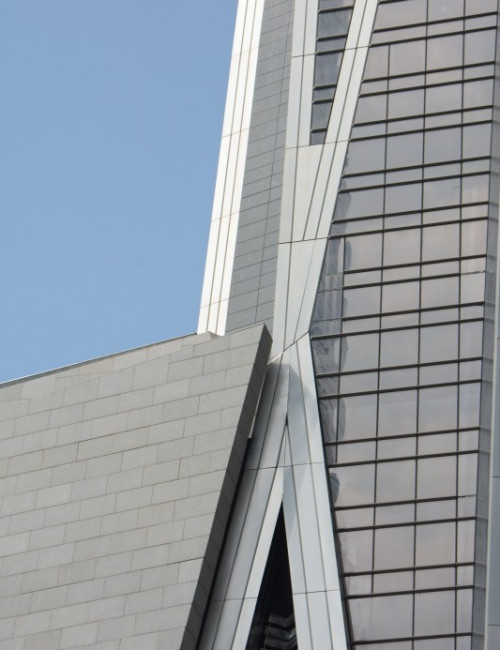

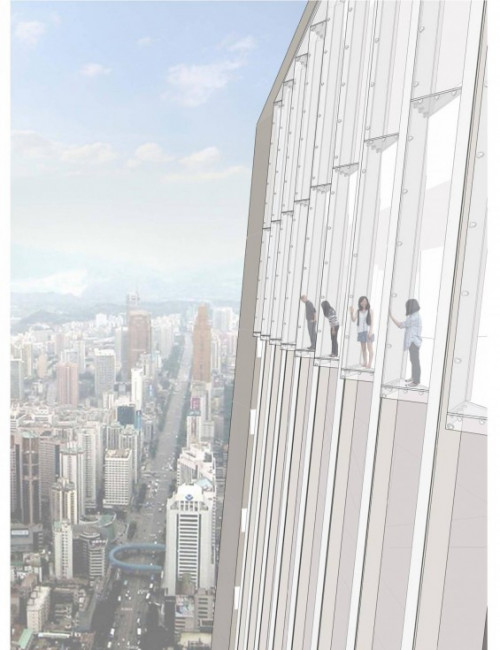

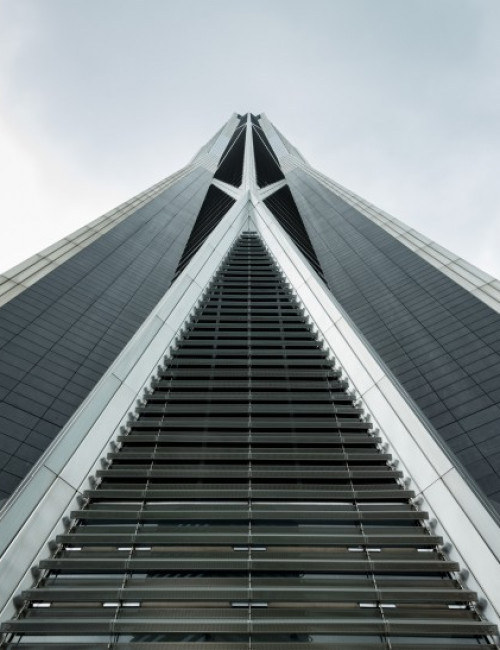

The façade of Ping An Finance Center is one of its most important features. At the time of completion, the tower is adorned by the largest stainless steel façade in the world to date, using a total of 1,700 tons of 316L stainless steel. This material was chosen specifically for this project due to its corrosion-resistance, which will keep the appearance of the Ping An Finance Center unchanged for several decades despite Shenzhen’s salty coastal atmosphere.
CTBUH Awards & Distinctions
Best Tall Building, by Height, 400 meters and above 2019 Winner
2019 CTBUH Awards
Construction Award 2018 Award of Excellence
2018 CTBUH Awards
Best Tall Building, by Region, Asia & Australasia 2018 Award of Excellence
2018 CTBUH Awards
Fire & Risk Engineering 2019 Award of Excellence
2019 CTBUH Awards
Videos
31 May 2018 | Shenzhen
A Milestone in Supertall Construction
Ping An Finance Center (PAFC) is an extraordinary project, which responds to the challenges of constructing in dense urban environments. PAFC advanced nearly every dimension...
31 May 2018 | Shenzhen
The Axis Mundi of the Pearl River Delta Megacity
The Shenzhen Ping An Finance Center (PAFC) is a transit-integrated, 600-meter-tall building that occupies a major node in the increasingly connected megacity of Hong Kong-Shenzhen-Guangzhou....
18 October 2016 | Shenzhen
Urban Development and Tall Buildings in Shenzhen
Tuesday October 18, 2016. Shenzhen, China. Chongguang Xu of Shenzhen Municipal Government, presents at the 2016 China Conference Session 7b: Shenzhen Bay Development. This presentation...
17 October 2016 | Shenzhen
CTBUH 2016 China Conference - Session 3c: Building Operation Q&A
Monday, October 17, 2016. Shenzhen, China. Tim Neal, Arcadis; Samuel So, JLL; Joseph Chou, Taipei Financial Center Corporation; Zhao Ming Wang, CCDI answer questions at...
17 October 2016 | Shenzhen
Intelligent Advances in Ping An Tower
This presentation discussed client requirements on both functional and aesthetic aspects for four mega-scale gates on the Ping An Financial Centre (PAFC) north tower. The...
17 October 2016 | Shenzhen
Mega Size Mixed-Use Projects: Redefining Vertical Urbanism
Monday October 17, 2016. Shenzhen, China. Dennis Poon of Thornton Tomasetti, presents at the 2016 China Conference Session 4c: Structural & Geotechnic Engineering. As the...
17 October 2016 | Shenzhen
Panel Discussion: Future Cities: What are the Biggest Threats and Opportunities?
Monday, October 17, 2016. Shenzhen, China. A panel discussing the challenges of growing urban populations throughout the globe.
17 October 2016 | Shenzhen
Panel Discussion: Shenzhen Re-centralization – Post Evaluation and Revitalization Strategy: Futian District
Monday, October 17, 2016. Shenzhen, China. Zhizhe Yu of Kohn Pedersen Fox Associates; Yixin Chen of Shenzhen Urban Planning Bureau; Weiwen Huang of Shenzhen Public...
17 October 2016 | Shenzhen
The State of the Art (Technologies) Q&A
Monday, October 17, 2016. Shenzhen, China. David Malott, Kohn Pedersen Fox; Wai Ming (Thomas) Tsang, Fing An Financial Centre; Karl-Ott Schoellkopf, Thyssenkrupp, answer questions at...
17 October 2016 | Shenzhen
X Information Modeling: Data-Driven Decision Making in the Design of Tall Buildings
This presentation outlined X-Information Modeling or XIM, a method of data-driven decision-making for the design of tall buildings. Developed over its application on more than...
Research
20 March 2020
Interactive Study on The Tallest 20 in 2020: Then and Now
CTBUH Research
This research paper undertakes a review of the 2012 report by the Council on Tall Buildings and Urban Habitat, “Tallest 20 in 2020: Entering the...
25 April 2019
Best Tall Buildings 2019: Dominant Trends
CTBUH
This year, CTBUH has vastly expanded its Awards program to consider the Best Tall Building category through several classes of height, rather than geographic regions,...
31 January 2019
Interactive Study on Tall Buildings in Numbers: 2018 Year in Review
CTBUH Research
In 2018, 143 buildings of 200 meters’ height or greater were completed. This is a slight decrease from 2017’s record-breaking total of 147, and it...
30 July 2018
World’s Tallest Buildings with Dampers
CTBUH Research
As tall buildings continue to be built in seismically-active and cyclone-prone areas, the need to augment the structures of these buildings with dynamic modification devices...
Tim Griffith for KPF.jpg)
05 February 2018
2017: Skyscraper History’s Tallest, Highest- Volume, and Most Geographically Diverse Year
This 2017 Tall Building Year in Review / Tall Buildings in Numbers data analysis report shows that more buildings of 200 meters’ height or greater...
17 October 2016
Cities to Megacities: Perspectives
CTBUH 2016 Conference Speakers
The CTBUH 2016 International Conference is being held in the three cities of the Pearl River Delta, the world’s largest “megacity,” projected to have 120...
17 October 2016
Coupling of Urban-Value & Mega High-Rise: Ping An Finance Center
Fang Xie & Xia Ai, CCDI Group
If the city is seen as a giant business, what is driving its market value? The height of the building is clearly one of the...
17 October 2016
Intelligent Advances in Ping An Tower
Wai Ming (Thomas) Tsang, Ping An Financial Centre Construction & Development
This paper presents client requirements on both functional and aesthetic aspects for four mega-scale gates on the Ping An Financial Centre (PAFC) north tower. The...
17 October 2016
Mega Size Mixed-Use Projects: Redefining Vertical Urbanism
Dennis Poon & Larry B. Giannechini, Thornton Tomasetti
As the draw to urban centers increases drastically with financial growth and global influence, emerging markets seek to develop salient markers of success and hope....
17 October 2016
Mixed Use Tall Buildings – The Challenges and Benefits of Vertical Urbanization
Samuel So, Colin Dowall & Michael George, JLL
China is the global epicenter of mankind’s mass urbanization and the exploding growth of global cities. China is the unrivaled leader in the development of...
kpf.jpg){kind=link}
kpf.jpg){kind=link}
CTBUH Initiatives
Filter by
8 April 2019
Ping An Finance Center - World’s Tallest All-Office Building
During the 2019 Tall + Urban Innovation Conference, Ping An Finance Center was confirmed as the world’s tallest all-office building and the tallest building in Southern China.
5 December 2018
CTBUH 2019 Award of Excellence Winners Announced
These projects will be represented at the CTBUH 2019 Tall + Urban Innovation Conference, where they will compete in real time for winning distinctions in each category.
22 August 2018
CTBUH Study Examines Tallest Buildings with Dampers
CTBUH has released a Tall Buildings in Numbers (TBIN) interactive data study on the world's tallest buildings with dampers.
12 September 2017
Vertical Transportation: Ascent & Acceleration
CTBUH partnered with Guinness World Records to identify the commercial building with the fastest elevator speeds and longest vertical runs.
27 March 2017
Ping An Finance Center Now Fourth Tallest Building in the World
CTBUH has certified the completion of Ping An Finance Center. At 599 meters it is the tallest building in Shenzhen, second tallest in China, and fourth tallest worldwide.
13 October 2016
Top Company Rankings: The World’s 100 Tallest Buildings
The Council is pleased to announce the Top Company Rankings for numerous disciplines as derived from the list of projects appearing in 100 of the World’s Tallest Buildings.
12 February 2016
Educational Outreach Program
CTBUH YPC kicked off their educational outreach initiative with a mentorship program at Pratt Institute, to teach students how to unlock synergistic potential in their designs.
20 January 2016
Inaugural Steering Committee Meetings in All Three Cities
Plans for the 2016 CTBUH Conference are now well underway, beginning with initial meetings of the Conference Steering Committee in all three cities.
15 April 2015
YPC New York Presents Pioneering Megatall: Ping An Finance Center
The inaugural CTBUH New York City Chapter event, held at the offices of Kohn Pedersen Fox Associates, showcased the rising Ping An Finance Center.
21 September 2014
Shenzhen Regional Tour Report
In Shenzhen attendees toured the sky lobby of Ping An Finance Center. Attendees enjoyed a traditional Chinese lunch at the Four Seasons Hotel before continuing to KK100.
Subscribe below to receive periodic updates from CTBUH on the latest Tall Building and Urban news and CTBUH initiatives, including our monthly newsletter. Fields with a red asterisk (*) next to them are required.
View our privacy policy
